Description:

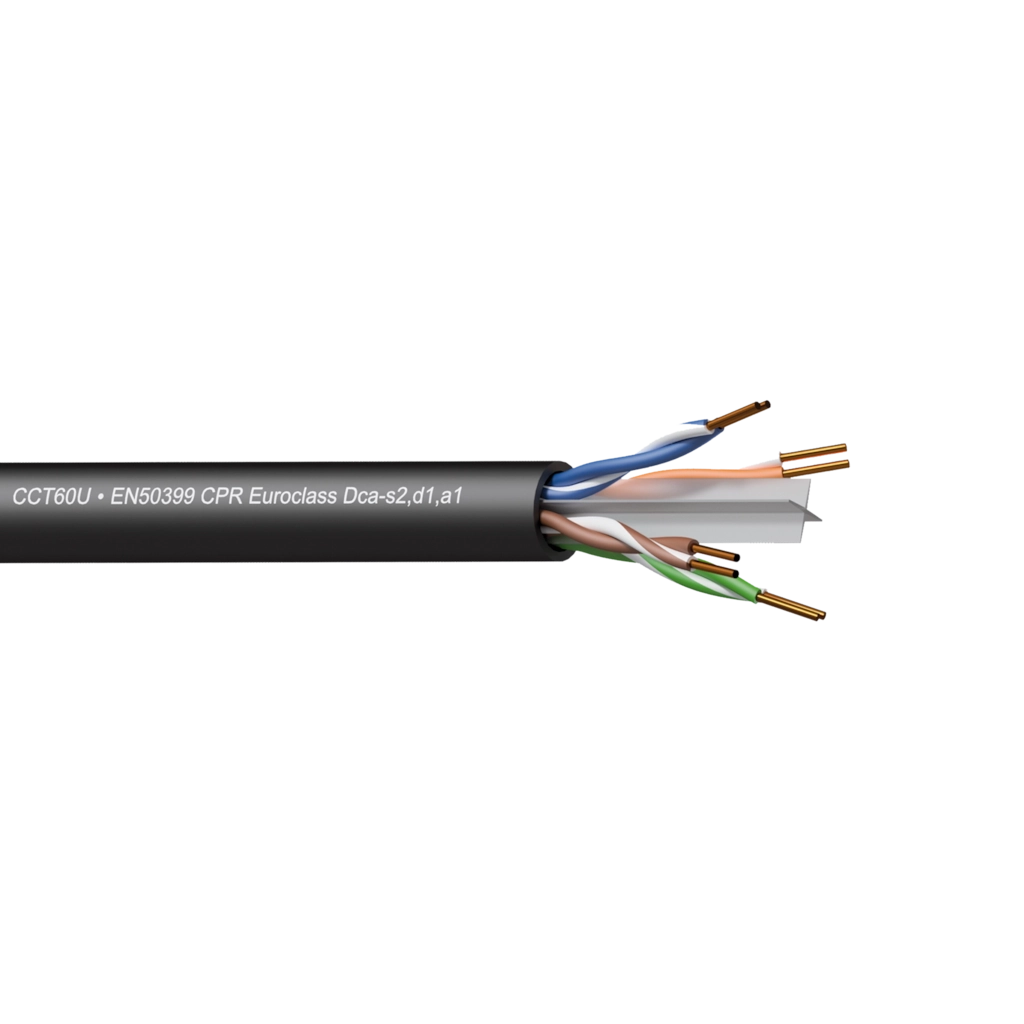

1 meter sample pack of the CCT60U-Dca. The CCT60U-Dca is a CAT6 installation networking cable compliant to the Dca standard of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire.
In addition to its improved fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling. The cable consists of 4 twisted pair cables with solid 23 AWG conductors and a “+” shaped separator. This way, crosstalk and system noise is reduced to a minimum, resulting in higher bandwidth and improved immunity against noise and interference caused by external devices. Providing an optimized solution for 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
More information about CPR compliant cables? Click here
Highlights:
- EN50399 CPR Euroclass Dca-s2,d1,a1
- "+" Shaped separator to reduce crosstalk
- 250 Mhz performance, up to 1000Base-T
Product Features:
- Application: AV & IT
- Application: Rental & MI
- Series: Bulk & Accessories
Downloads:
- PROCAB Contractor CPR series - ENG
- PROCAB Contractor CPR series - FR
- PROCAB Contractor CPR series - DE
- Declaration of Performance
- Declaration of Performance
Brand: PROCAB-avit
