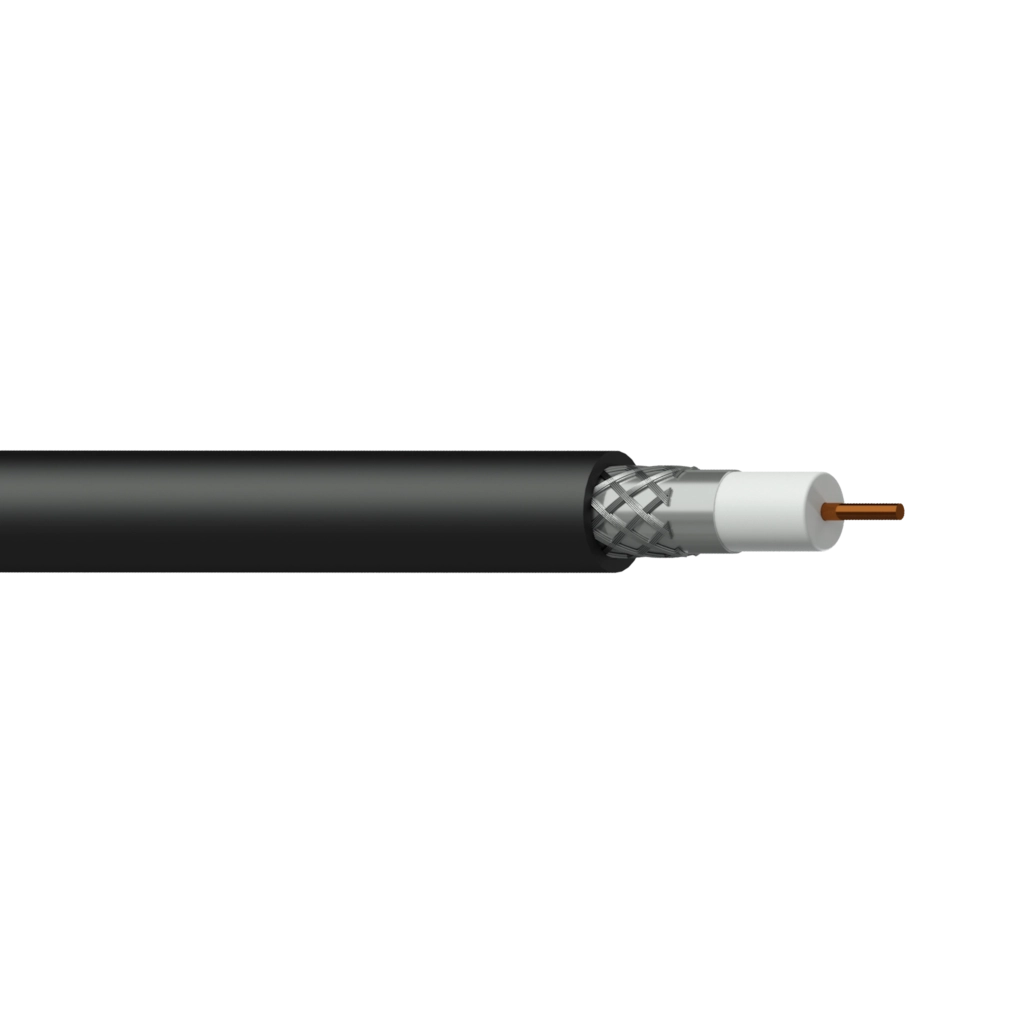

PROCAB-avit - CCX160/3 - 3G SDI coaxial video cable - RG6/U - solid 0.82 mm² - 18 AWG - FlamoFlex™ - 300 m plastic reel
Description:
The CCX160 is a 3G SDI coaxial installation cable featuring a Flamoflex™ outer jacket compliant with the IEC 60332-1 standard regarding fire and flammability resistance in public installations. The Flamoflex™ material is specifically designed with installers' convenience in mind, offering a smooth and durable outer jacket for easy installation and pulling. This cable is designed according to the RG6/U standards, featuring a solid high-purity copper conductor which is surrounded by polyethene isolator. The double shielding consisting of an overall aluminum foil surrounded by a braiding offers a high immunity against noise and interference caused by external devices. The CCX160 cable can be used for a wide variety of installation applications such as CATV and CCTV distribution, analogue video interconnections as well as HDTV digital SDI, HD-SDI and 3G-SDI video transmissions. Compatible with Neutrik BNC connector NBNC75BTU11. Recommended HD distance: 140 m
Highlights:
- Double shielding (Al-foil + Braiding)
- Flamoflex™ IEC 60332-1 installation jacket
- HD-SDI up to 111 meter
- 3G-SDI up to 76 meter
Product Features:
- Application: AV & IT
- Series: Bulk & Accessories
Downloads:
Brand: PROCAB-avit
