Description:

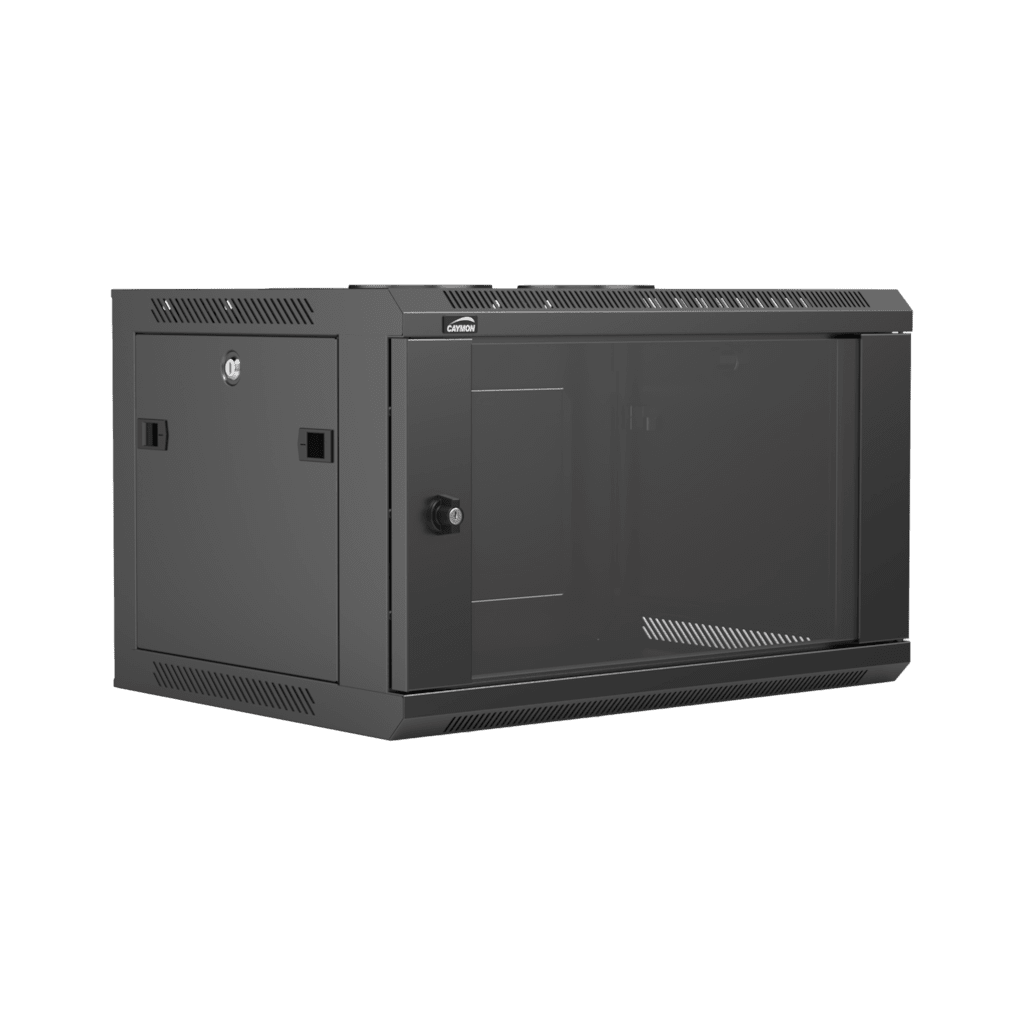

The WPR406R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR406R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panel allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.
Highlights:
- Keylock with butterfly handle
- Punched square holes for use with snap-in cage nuts
- Stores up to 6 units of 19” Equipment
- Integrated ventilation grid on top
- Removable rear panel
- Cable entry on top, back & bottom (closable)
- Front in depth adjustable 19” profiles (max 410 mm)
- Removable sides for easy installing & cabling
- Loading capacity of 60 kg
Product Features:
- Dimensions: 600 x 368 x 450 mm (W x H x D)
- Unit height: 6 HE
- Max. usable depth: 410 mm
- Max. load: 60 kg
- Weight: 18.5 kg
- Colours: Black (RAL9004)
- Colours: White (RAL9003)
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
