Description:

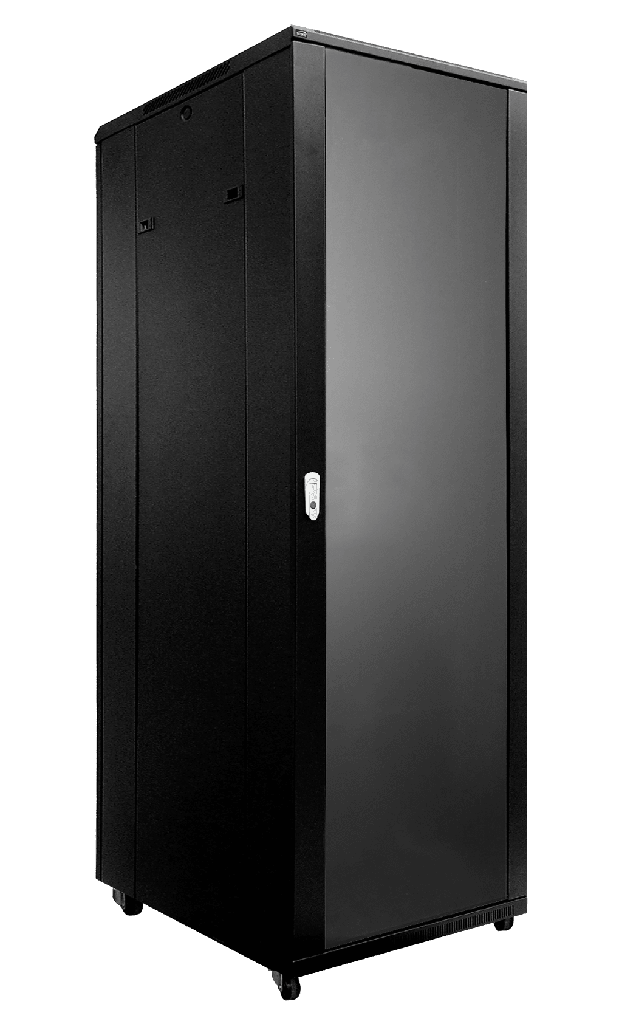

The SPR1042 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold-rolled steel 2 mm thick frame and 1,2 mm thick plates provide a solid and stable construction making it suitable for heavy equipment, storing up to 42 units inside. The SPR1042 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and levelling once correctly positioned.
The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19“ profiles provide great flexibility for installing equipment depending on its depth. Both front and rear doors are fitted with a standard key lock.
Highlights:
- Front and rear in depth adjustable 19” profiles (max 940 mm)
- 50 mm Wheels + leveling feet included
- Removable sides for easy installing & cabling
- Standard keylock for both doors
- Integrated ventilation grid on top
- Reversible door position
- Tempered glass door with keylock
- Punched square holes for use with snap-in cage nuts
- Stores up to 42 units of 19" equipment
Product Features:
- Unit height: 42 HE
- Weight: 115 kg
- Colours: Black (RAL9004)
- Max. usable depth: 940 mm
- Wheel: None
- Dimensions: 600 x 1985 (2055) x 1000 mm (W x H (incl. feet) x D)
- Static load capacity (adjustable feet): 800 kg
- Dynamic load capacity (transport castors): 400 kg
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
