Description:

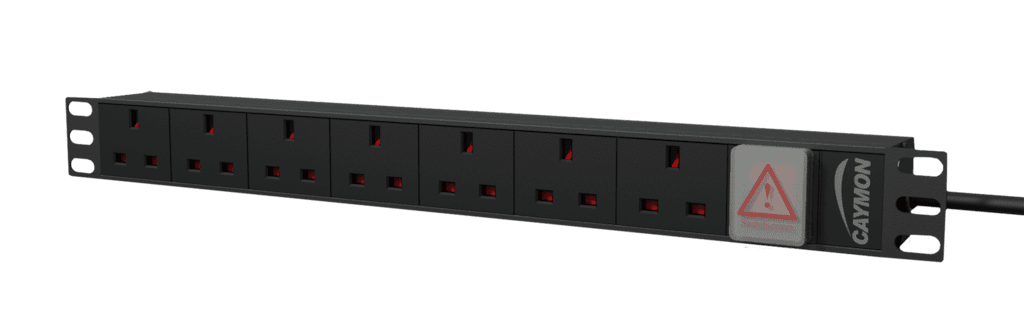

The PSR107UKS are 19” power distribution units, compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. They come with an illuminated switch on the socket side. The construction is made using black powder coated aluminum fitted with steel 19” mounting ears on each side.
The total height covers a single 19” rackspace, allowing it to be installed in any 19” housing or equipment rack. Using the rotatable side ears, wall mounting is also made possible. Input connections are made using a fixed 2.5 meter connection cable fitted with a male UK (BS-1363) plug. UK (BS-1363) output sockets allow power distribution to seven devices. A chassis earth connection point is provided for easily connecting your rack/enclosure to mains earth, as required by safety regulations.
Highlights:
- 3 x 2.5 mm² cable diameter
- Black aluminum housing
- 7 x UK (BS-1363) power outlet
- 13A ~ 250 VAC / 3250 W Max
- Chassis earth connection point
- 2.5 meter cable
- With illuminated switch
- Male UK (BS-1363) input plug
Product Features:
- Dimensions: 480 x 45.2 x 44.9 mm (W x H x D)
- Switch: Socket side
- Cable length: 2.5 m
- Weight: 0.820 kg
- Unit height: 1 HE
- Power handling: 250 V AC ~ 13 A / 3250 W
Downloads:
Brand: CAYMON
