Description:

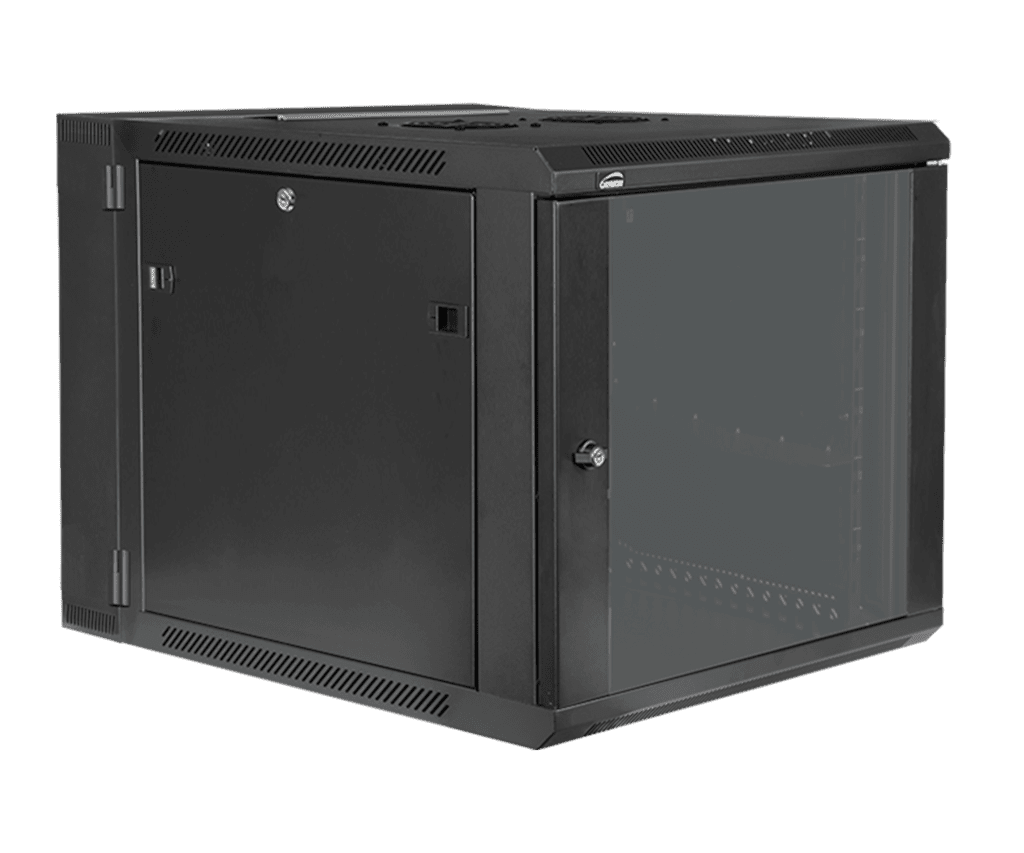

The HPR509 is a professional 19” double section wall rack cabinet which complies to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It ensures maximum installation, connectivity and maintenance ease storing up to 9 units of 19” equipment. The solid construction made of an 1.5 mm thick steel frame and 1.2 mm thick plates is finished with a black (RAL9004) fine structured powder coating. It provides a stable and secure installation while the double section structure allows easy access to the rear side of the equipment. The tempered smokey glass front door is reversible and secured with a key lock which keeps the equipment accessible for authorized persons only. Other present features are removable sides and in depth adjustable 19” profiles with unit measurement indicators and punched square holes for use with snap-in cage nuts.
Highlights:
- in depth adjustable 19” profiles (max 510 mm)
- Stores up to 9 units of 19” Equipment
- Integrated ventilation grid on top
- Reversible door position
- Double section allowing easy access to rear side of equipment
- Double lock connecting front and rear section
- Tempered glass door with keylock
- Loading capacity of 30 kg
Product Features:
- Dimensions: 600 x 501 x 550 mm (W x H x D)
- Unit height: 9 HE
- Max. usable depth: 510 mm
- Max. load: 30 kg
- Colours: Black (RAL9004)
- Weight: 26.800 kg
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
