Description:

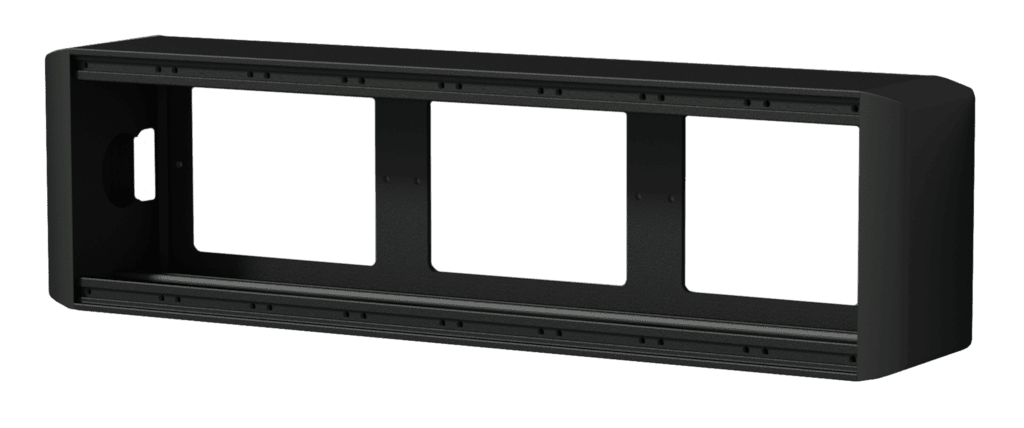

The CASY038 is a modular on-wall chassis which can be fitted with 8 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project specific requirements. Possibilities range from audio, video and data interconnection to power distribution, control panels, power supplies and many more. The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 8 units with a built-in depth up to 60 mm.
It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.
Highlights:
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Pre-threaded mounting profile for easy assembly
- 60 mm usable depth
- Structured and scratch resistant black powder coating
- Solid cold rolled steel construction
- Provided cable gland entry
- Stores 8 units of CASY modules
- Removable cable gland for D-size connectors at choice
Product Features:
- Module: None
- Dimensions: 316 x 88.1 x 65 mm (W x H x D)
- Max. usable depth: 60 mm
- Weight: 0.6 kg
- Construction: Alu extrusion with plastic side covers
- Connection: Large access holes on rear side Cable duct or gland entry on sides
- Finish: Structured powder coating
- Colours: Black (RAL9004)
Downloads:
Brand: CAYMON
