CAYMON - CASY002/B - CASY chassis 2 x 12 space - 19", 2HE mounting - 270mm depth - Casy chassis 12 space - 2he 19" mounting - 270mm - black
Description:

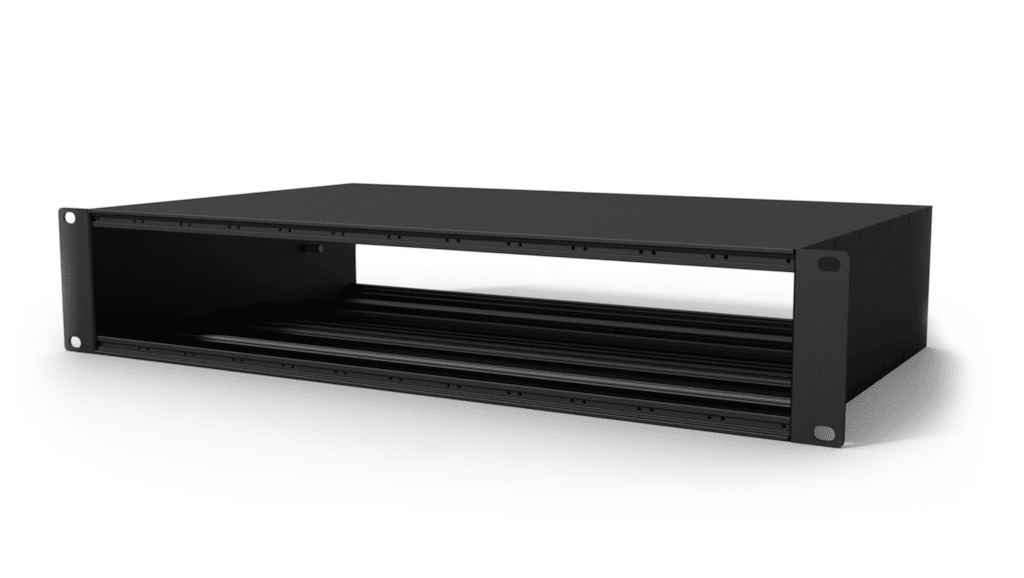

The CASY002 is a 19” rack-mountable chassis which can be fitted with 2 x 12 modules from the CASY range. The flexible and modular structure ensures maximum versatility, allowing the system to be adapted to project-specific requirements. Possibilities range from audio, video and data interconnection, to power distribution, internal rack supplies and many more. The aluminium top and bottom construction features pre-threaded hole inserts allowing module installation with a maximum of 12 units on both front and rear sides. Modules can be fixed inside the unit using the included M3 screws, while the side ears are fitted with holes for fixation to a 19” equipment rack. The side ears are constructed out of cold-rolled steel with internal pillars for chassis grounding. The overall construction is finished in a black (RAL9004) structured and scratch-resistant powder coating.
Highlights:
- Stores 12 units of CASY modules on front & rear
- 19” Rack mountable (2 HE)
- Flexible structure for system integration & connectivity
- Wide variation of compatible modules available
- Aluminum extruded construction with steel side ears
- Pre-threaded mounting profile for easy assembly
- 270 mm usable depth
- Structured and scratch resistant black powder coating
Product Features:
- Dimensions: 483 x 88 x 270 mm (W x H x D)
- Weight: 3.140 kg
- Construction: Alu extrusion with steel side ears
- Module: None
- Module: None
- Mounting: 19” Rack mount (2HE)
- Finish: Structured powder coating
- Colours: Black (RAL9004)
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
