Description:

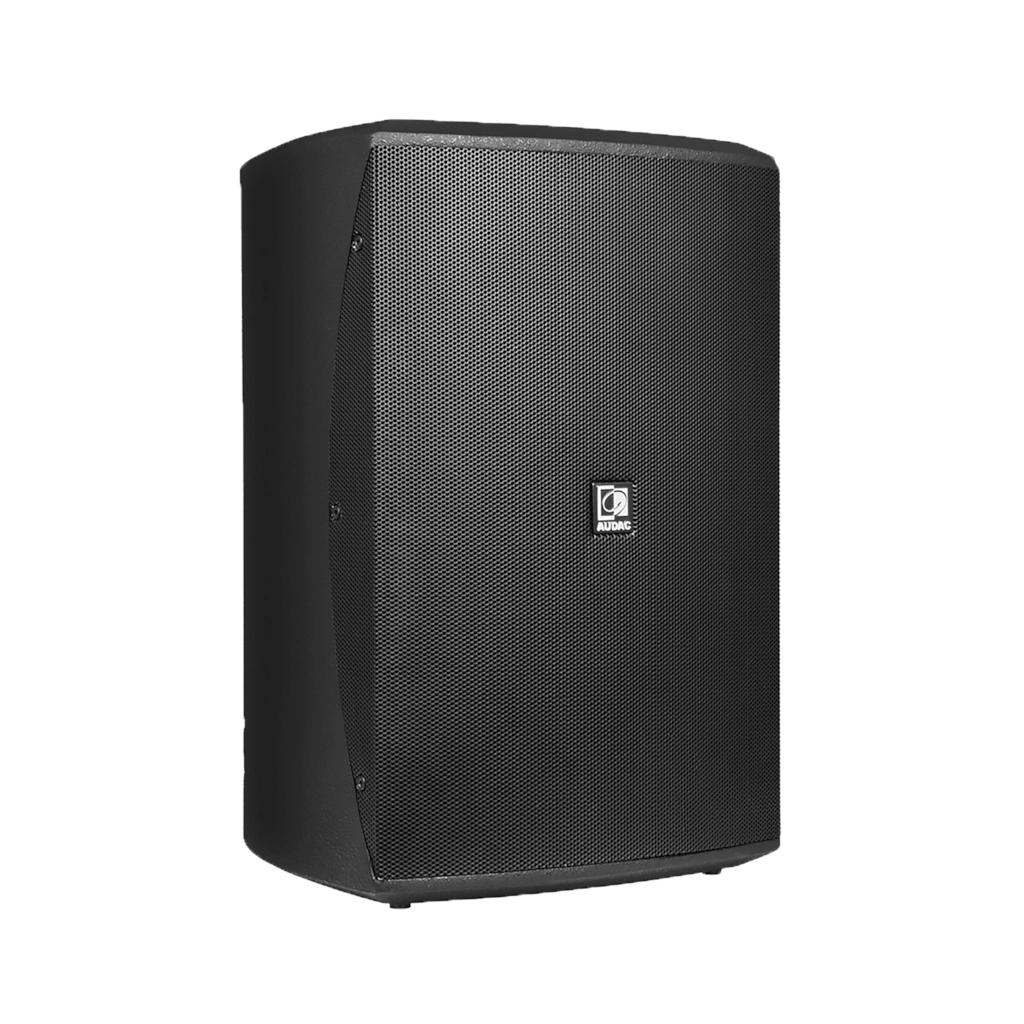

The VEXO8 is a high-output loudspeaker cabinet, featuring an 8” high efficiency mid/low range driver and 1” compression driver fitted with a 100° x 80° coverage horn, providing a powerful and detailed sound in a compact cabinet.
The exceptional accuracy and clarity coming from this compact cabinet are recommended to be extended with a complementary bass cabinet adding the punchy & deep bass, resulting in a stunning sound over the entire frequency range. Their elegant enclosure allows them to be used in modern & trendy installation applications such as bars and nightclubs, while their functional features make them perfect for use in compact mobile systems.
It delivers a powerful full-range sound with an RMS rating of 175 Watt and a maximum of 350 Watt. Compression driver overload protection is provided through an internal limiting circuit. Connections are made using two speaker connectors allowing link through to other cabinets.
Mounting in both horizontal and vertical direction, up to 20°, is possible with the included wall bracket and the rotatable horn. An optional 35mm pole adapter can be installed when used in mobile applications.
Highlights:
- 20° incline angle
- Modern and elegant design
- 1" Compression horn tweeter
- High efficiency 8" Mid/low woofer
- Tweeter protection circuitry
- 2 x Speaker connector (Linkthrough)
- Vertical and horizontal mounting (rotatable logo)
- Zinc alloy mounting bracket included
Product Features:
- Dimensions: 250 x 380 x 262 mm (W x H x D)
- Weight: 9.700 kg
- Construction: Medium Density Fibreboard with structured coating
- Mounting & handling: 2-way Revolving mounting bracket
- Mounting & handling: Optional 35 mm pole adapter
- Colours: Black (RAL9004) (VEXO8/B)
- Colours: White (RAL9003) (VEXO8/W)
- Front finish: Steel grill
- Operating temperature: -20 °C ~ 60 °C
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Product manual - FR
- Technical drawing
- Technical drawing
- Technical drawing - Bracket
- Technical drawing - Bracket
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- EASE file
- Acoustical data graphs
Brand: AUDAC
