Description:
The PMQ series are professional 70/100V quad channel power amplifiers, providing a new standard for premium sound 100V amplification in public address applications. Their advanced features and availability in different output powers provide an enormous flexibility for numerous applications.

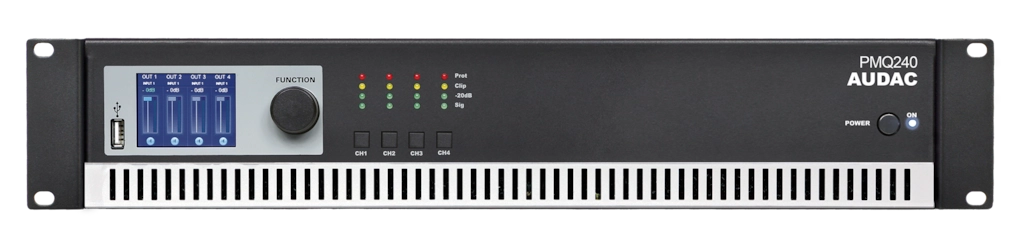

The PMQ240 is a four channel Class-D 70/100V power amplifier with an output power of 240 Watt for each channel. The WaveDynamics™ DSP processor combination with the 2.5” LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.
Acoustics can be optimized using the filters selectable between Low / High & Band Pass and the 7-Band equalizer both with adjustable frequencies and Q-factor. Other provided functions are delay and dynamic bass boost. These settings can be custom configured using the front panel of the amplifier, whereby access can be given on two different levels (User & Administrator) using password or USB-key protection.
Configuration is made simple by the loudspeaker presets and full system configurations which can be selected from a library and uploaded with a USB flash drive. This ensures the best acoustical performance with a ‘bullet-proof’ loudspeaker protection.
A great input flexibility and source compatibility is offered by the input selection matrix and the XLR and terminal block signal connections. System integration is made easy using the RS-232 control port. Optional Dante™ interface is available for the WaveDynamics™ amplifiers. The installation of this network interface allows receiving and sending of low latency, high quality audio over a standard Ethernet network.
Highlights:
- Lightweight class-D amplifier
- Dante™/AES67 expansion port
- WaveDynamics™ speaker & set configurations
- Advanced DSP and loudspeaker management
- 2.5" LCD display with intuitive user interface
- XLR input & linkthrough connections
- Terminal block output connections
- RS232 control
Product Features:
- Dimensions: 482 x 88 x 420 mm (W x H x D)
- Weight: 8.05 kg
- Unit height: 2 HE
- Construction: Steel
- Colours: Black
Downloads:
- Product information sheet - FR
- Product manual
- Product manual - FR
- SMAQ and PMQ Commands Manual
- Required Port Numbers
- Technical drawing
- Technical drawing
