Description:

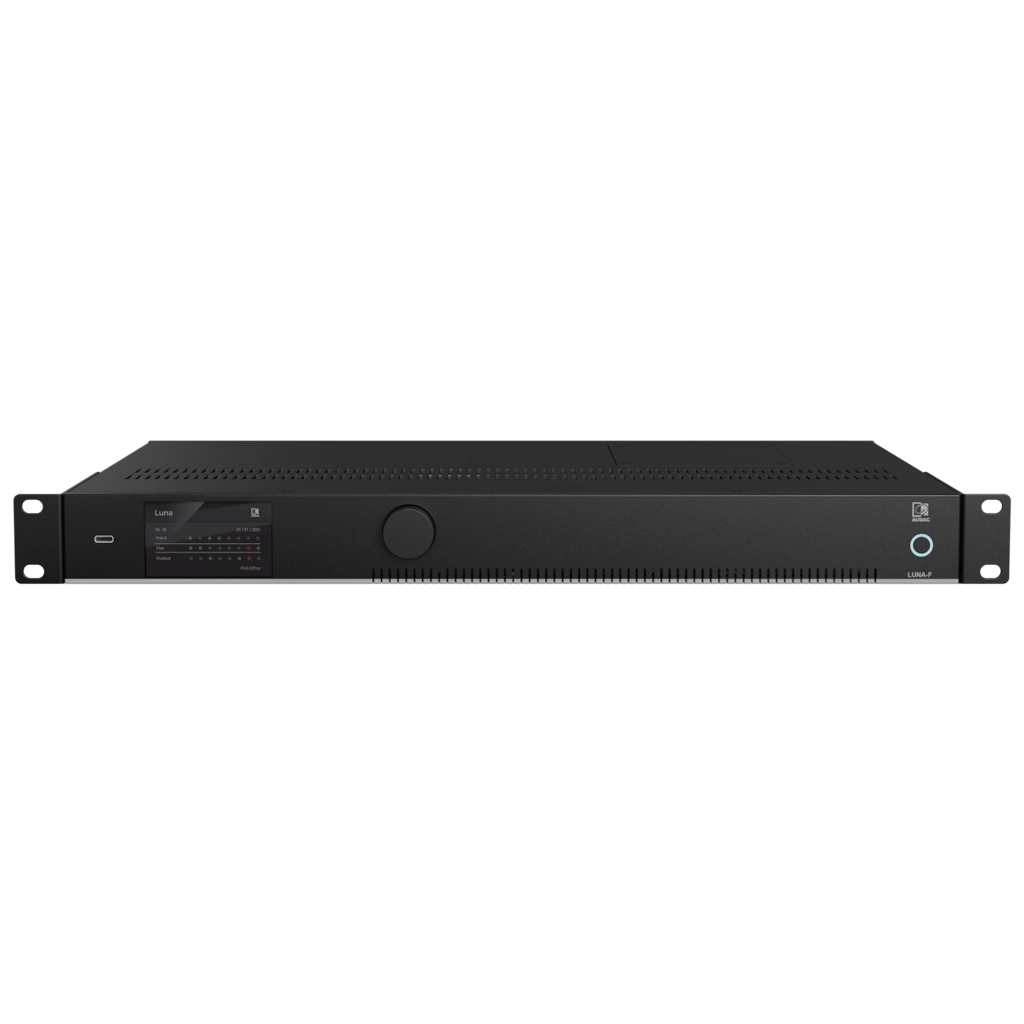

The LUNA-F is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the largest enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSP's (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.
It includes 8 Mic/Line Inputs, 8 flex channels that can be switched between 8 Mic/Line Inputs or Line level output, and 8 Line level outputs. Additionally, up to 64x64 Dante™/AES67 I/O Channels are available with primary and secondary ethernet ports, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O units with redundancy.
The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.
The internal Linux core brings the entire control of this system and family members together, while also accommodating messaging, event scheduling, and implementation possibilities for further Linux-based functions. Besides the full network control, other options like RS-232 and RS-485 (available from end of July 2024) are also implemented for third-party control. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™.
Highlights:
- 8 Mic/line inputs, 8 flex inputs/outputs and 8 outputs
- 24 fully flexible GPIO in- or outputs
- Up to 64 x 64 x Dante/ AES67 channels (16 x 16 included)
- Acoustic Echo Cancellation (4 channels) – Optional add-on
- Event Handler (trigger & timed event scheduling)
- Auto-update (OTA) feature
- WaveTune™ & WavePreset™ audio processing
- Superior sound quality & low latency
- Compatible with all AUDAC network control devices (incl 3 party equipment)
- 16 Stereo or up to 32 mono flexible zones (all combinations possible)
Product Features:
- Dimensions: 482 x 44 x 335 mm (W x H x D)
- Mounting: 19”
- Unit height: 1 HE
- Construction: Steel
- Colours: Black (RAL9005)
Downloads:
- Required Port Numbers
- Hardware manual
- Licensing appendix
- Technical drawing
- Technical drawing
- Atellio family - Feature release timeline
- Firmware release notes
Brand: AUDAC
