Description:
The KYRA12 design column speaker consists of 12 x 2” high-quality aluminum cone full-range drivers, delivering extraordinary clarity and detailed sound. The overall continuous power handling reaches 120 Watt and the beamwidth of 174° x 9° (-6 dB avg 1 kHz - 4 kHz)* makes it the perfect match for acoustically difficult venues, reducing echo and microphone feedback which optimizes the speech intelligibility in reverberant venues
A multi-tapping line transformer allows it to be connected to 70V/100V public address systems with different power taps for 40W, 20W and 10W and/or low impedance (12Ω) systems.**
To guarantee the optimal performance and long term reliability in outdoor circumstances, various specific features are provided. The connection of the loudspeaker is performed using a waterproof rotatable AWX-5 connector whereby the desired power tap can be selected depending on the rotation of the connector. Secondly, the 12 drivers receive a special coating to protect them from the elements while an acoustically transparent and water-repellent cloth driver keeps penetrating water at a safe distance.
Further added reliability is achieved by using an aluminum front grill and a stainless steel mounting bracket. Together, these improvements result in a weatherproof IP55 column speaker of exceptional quality and design!
*Given dispersion values are the average beamwidth within the 1 kHz – 4 kHz frequency range (-6 dB - 1/3 oct), which are critical for the speech intelligibility in the main application field of these loudspeakers.
**Due to an optimized calibration, the KYRA12, compared to its predecessor the AXIR, will have a standard low impedance of 12 ohms instead of 6 ohms.
Highlights:
- IP55 Ingress protection
- AWX5™ waterproof connector
- Multi-functional wall bracket allowing swiveling and down-tilting
- Slimline aluminum design
- 12 x 2" high-quality broadband speakers
- Multi-tapping 70V / 100V line transformer
Product Features:

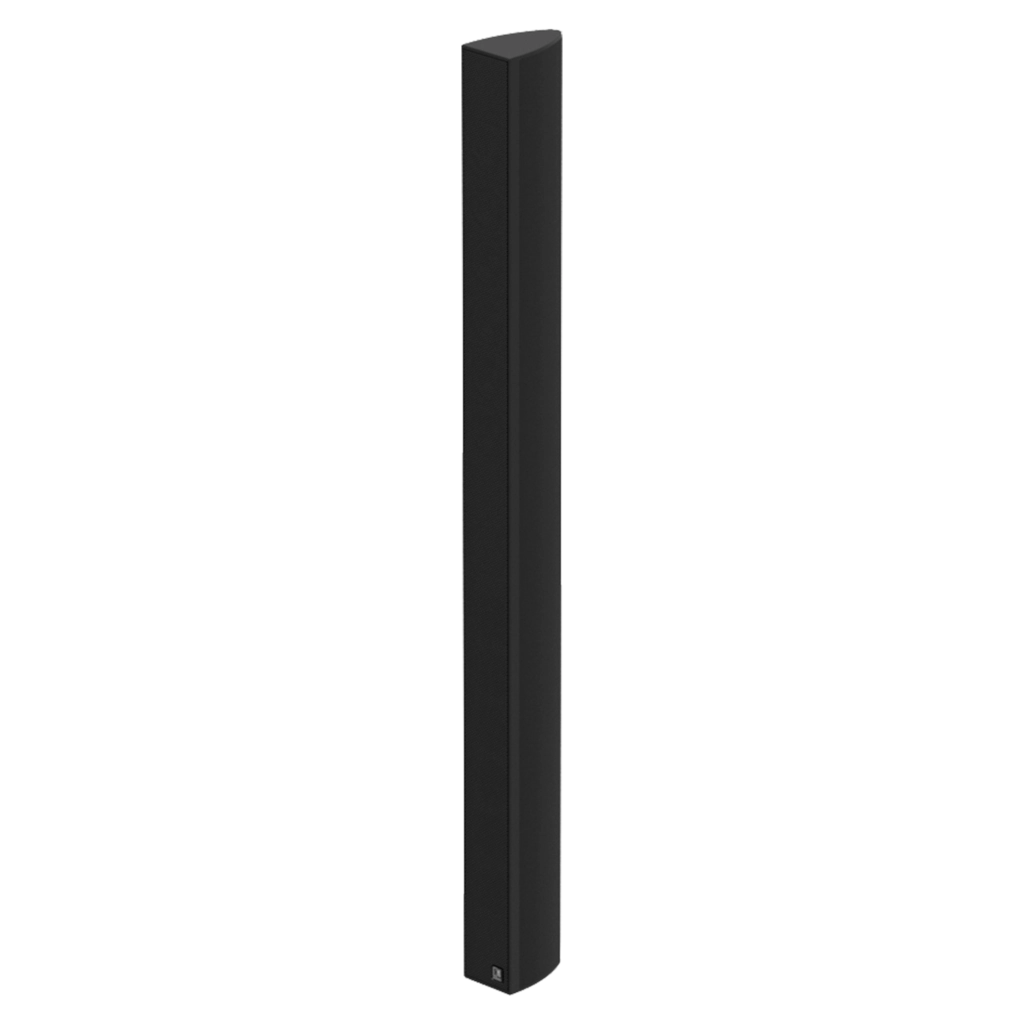

- Colours: Black (KYRA12/OB - RAL9005)
- Dimensions: 70 x 1006 x 101 mm (W x H x D)

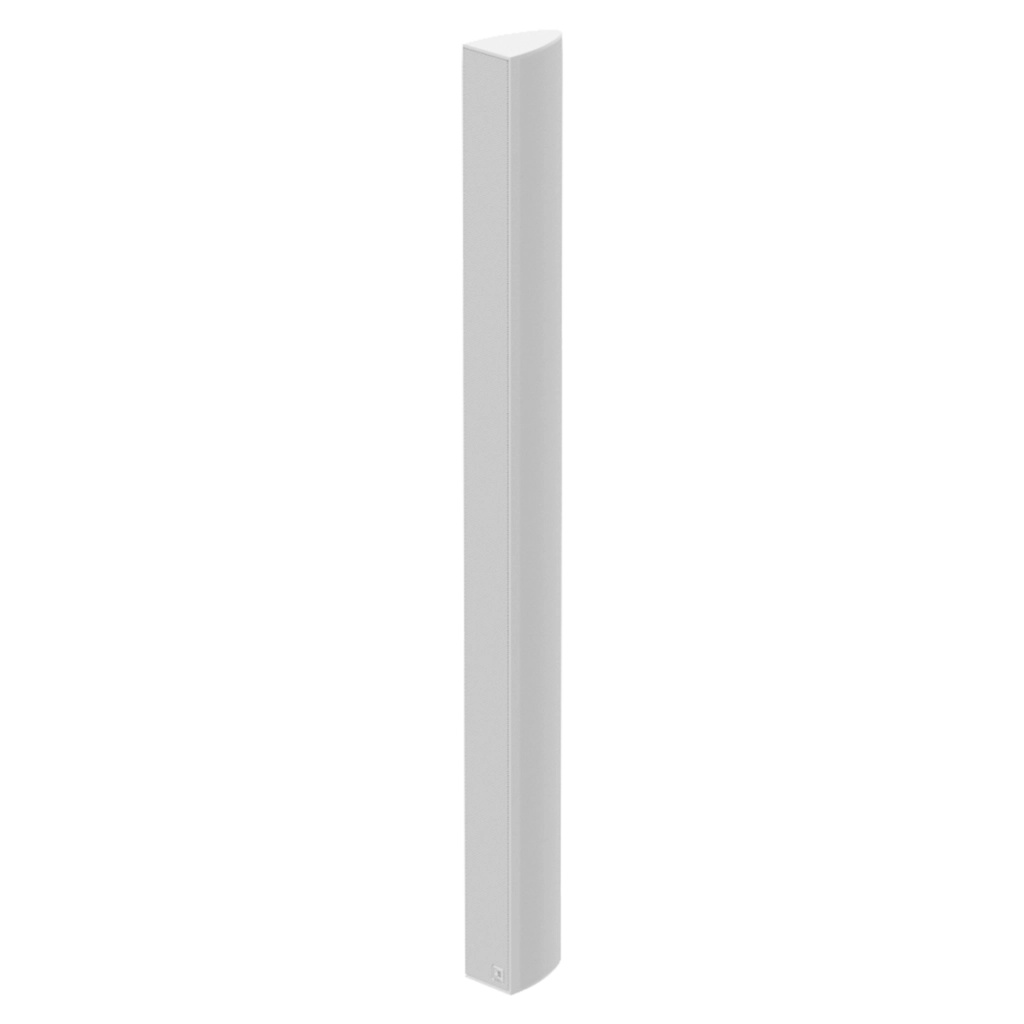

- Colours: White (KYRA12/OW - RAL9003)
- Construction: Aluminium with plastic side covers
- Front finish: Aluminium grill
- Accessories: None
- Accessories: None
Downloads:
- Product Manual
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- CE certificate
- EASE Focus File
- Acoustical data graphs
Brand: AUDAC
