Description:

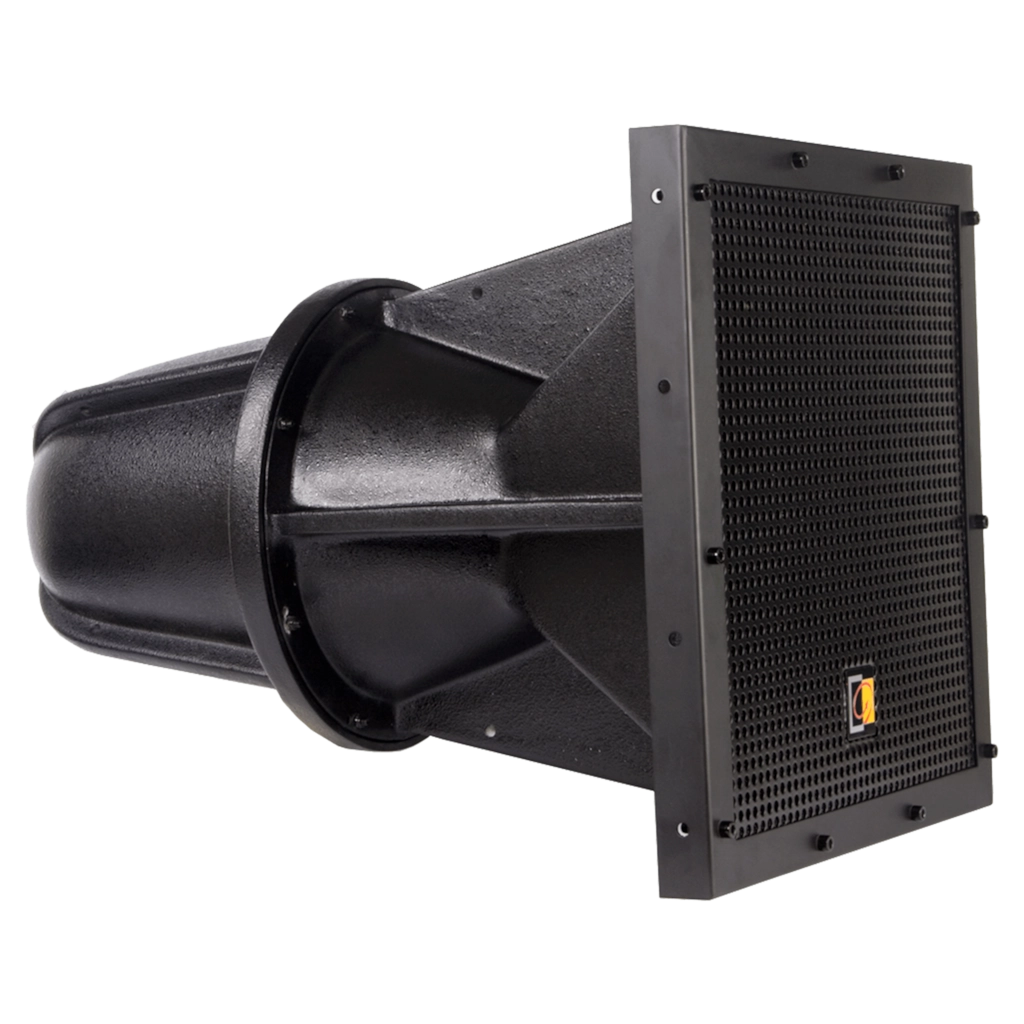

The AUDAC HS212 is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS212 features a 1,8” HF driver with an 12” LF loudspeaker combination for the best sound reproduction and has a very special coverage pattern of 40° horizontally and vertically. The construction of the HS212 is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there is an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 54, this speaker will be suitable for any environment where humidity or moisture are present. For connecting, two speaker connectors are provided. The second connector can be used for linking through the signal to other speaker cabinets. Mounting brackets: - MBK212Z (Stainless Steel)
Highlights:
- IP54 Ingress protection
- 12" high output woofer with a 1.8" voice coil
- Multi-Layer glass composite material with textured EPDM black coating
- Barrier terminal block in waterproof connection box
Product Features:
- Dimensions: 508 x 508 x 732 mm (W x H x D)
- Weight: 30.800 kg
- Construction: Multi-Layer glass composite material with textured EPDM black coating
- Front finish: Powder coated aluminium with lining
- Mounting & handling: Mounting bracket fixing holes
- Accessories: None
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- CE certificate
- EASE file
- Acoustical data graphs
Brand: AUDAC
