Description:

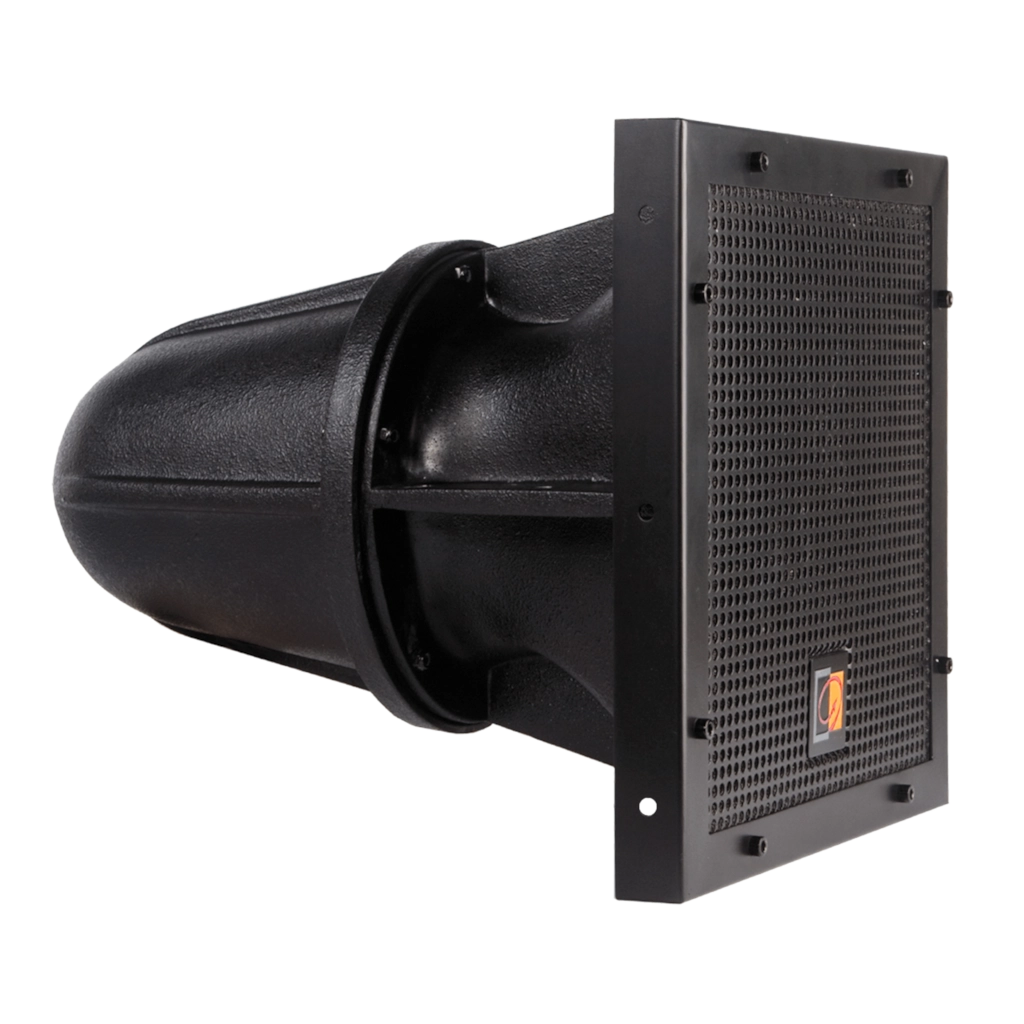

The AUDAC HS208T is a full-range loudspeaker system engineered to provide long throw, full range sound projection in a variety of fixed in- and outdoor applications. Its wide, smooth frequency response and high efficiency ensure high-fidelity music reproduction along with superb projection of clear, intelligible speech at very low distortion. The HS208T features a 1,3” HF driver with an 8” LF loudspeaker combination for the best sound reproduction, and has a very special coverage pattern of 40° horizontally and vertically. The HS208T contains the possibility to choose from power tapping for: - 120 Watt, 60 Watt, 30 Watt @ 100V - 8 Ohm impedance. The construction of the HS208T is made of polyester with textured EDPM black coating and a perforated aluminum grill front finish. Behind the aluminum grill, there is an acoustic foam assembled, which prevents rain coming into the speaker. Due to an Ingress Protection rating (IP) of 65, this speaker is suitable for any environment where humidity or moisture are present. At the rear, you will find cable clamps to select the line transformator as desired. The cable clamps are shielded to obstruct moisture and humidity Mounting bracket: - MBK208Z
Highlights:
- IP65 Ingress protection
- Multi-tapping 100V line transformer
- 8" high output woofer with a 1.3" voice coil
- Multi-Layer glass composite material with textured EPDM black coating
- Barrier terminal block in waterproof connection box
Product Features:
- Dimensions: 360 x 360 x 482 mm (W x H x D)
- Weight: 15.600 kg
- Construction: Multi-Layer glass composite material with textured EPDM black coating
- Front finish: Powder coated aluminium with lining
- Mounting & handling: Mounting bracket fixing holes
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Technical drawing
- Technical drawing
- 3D-PDF
- 3D-DWG
- STL File
- STEP File
- OBJ File
- CE certificate
- Acoustical data graphs
Brand: AUDAC
