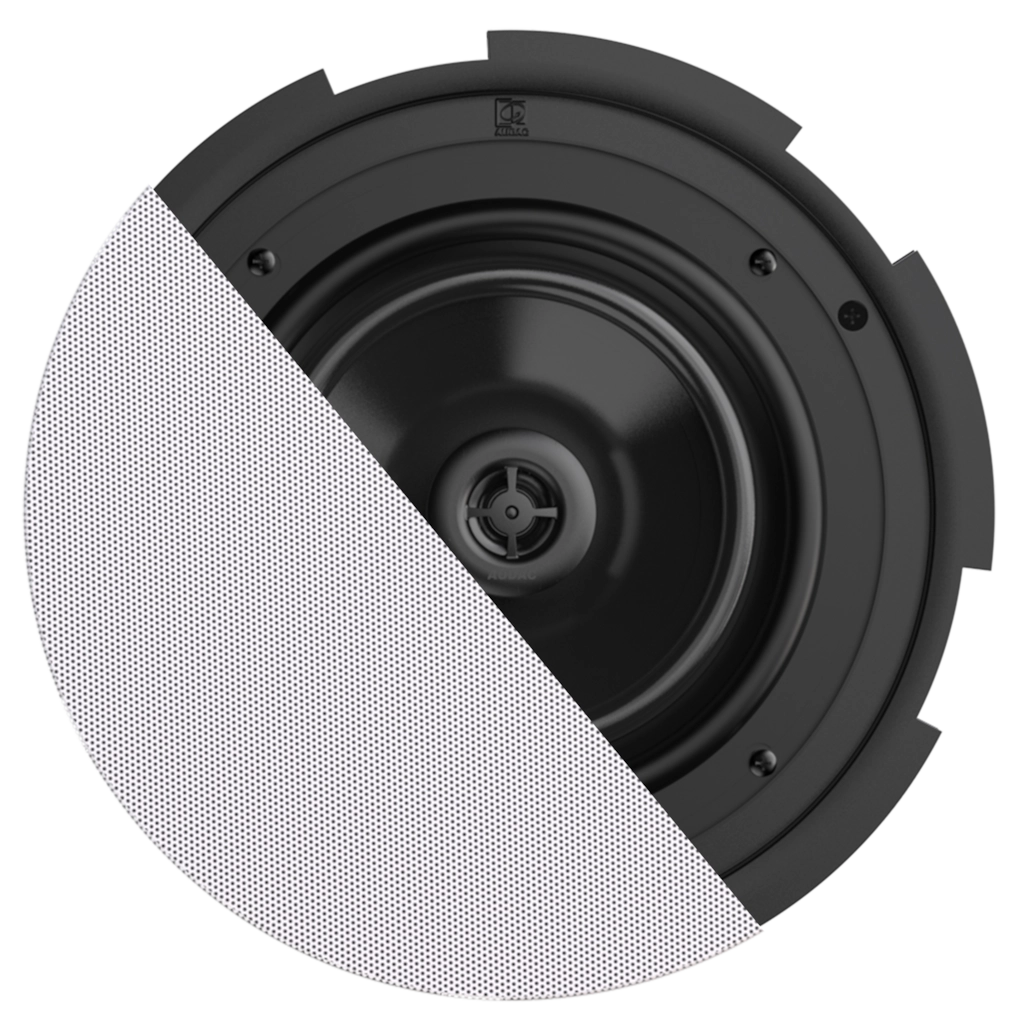

AUDAC - CIRA824I/W - QuickFit™ 2-way 8" ceiling speaker with TwistFix™ grill - White version, 8Ω & 24 Watt @ 100V (RAL9016)
Description:
Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.
The CIRA8 features a 8” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 40 Watt (RMS) and maximum power handling of 80 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm & 16 Ohm bypass connection.
Highlights:
- Lifetime stability and toolfree installation with unique Quickfit™ innovation
- Exceptional intelligbillity and musical performance
- Consistent sound profile throughout complete family
- TwistFix™ borderless grill design
- Excellent off axis performance
- Flat frequency response
Product Features:
- Cut-out measurement: 243 mm (Ø)
- Dimensions: 270 x 82 mm (Ø x D)
- Weight: 1.65 kg (CIRA840D)
- Weight: 1.75 kg (CIRA824)
- Construction: ABS
- Front finish: Twist-Fix™ borderless finely perforated steel grill
- Built-in depth: 82 mm
- Mounting: QuickFit™ mounting system
- Colours: White (RAL9003) (CIRA824/W & CIRA840D/W)
- Operating temperature: -20 °C ~ 60 °C
Downloads:
- Product information sheet - FR
- Installation manual
- Installation manual - FR
- Technical drawing - CIRA824
- Technical drawing - CIRA824
- Technical drawing - CIRA840D
- Technical drawing - CIRA840D
- 3D-PDF
- STL File
- STEP File
- OBJ File
- EASE Address file - CIRA824
- Acoustical data graphs
- EASE Focus + Address File
- Comparison Guide
- AUDAC - CIRA Ease of installation
Brand: AUDAC
