Description:

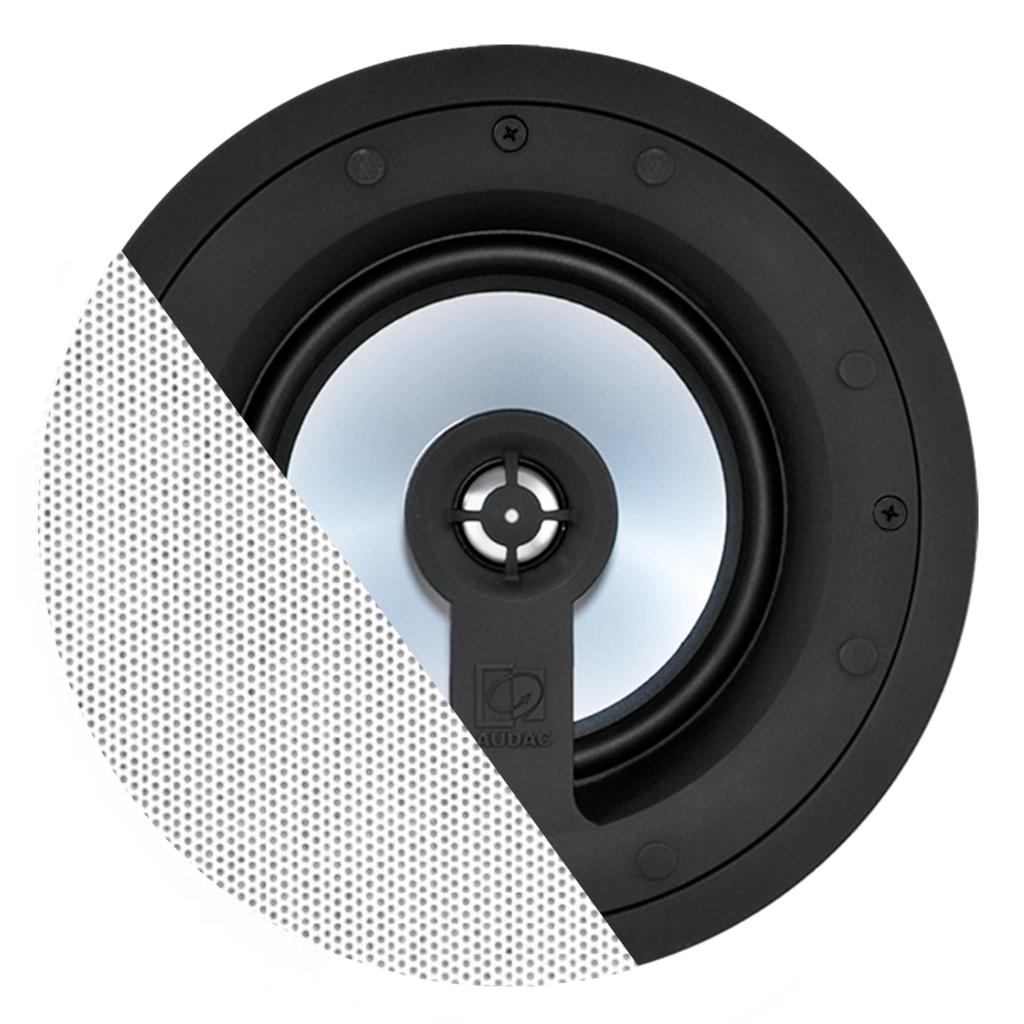

The CELO series is AUDAC‘s first High-end slim ceiling speaker series, consisting of four models which can guarantee an optimal experience for every situation and application. The CELO6 is the medium 6” model of this series. Due to its slim grill design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, these speakers will become nearly invisible when mounted. To make them blend in even more, the grill can be painted in the same color as the surrounding surface or an optional black grill (GLC06/B) will provide seamless integration in dark environments.
This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple, but still reliable enough for keeping the grill in place during the complete lifetime of the loudspeaker. When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by using only the highest quality materials, guaranteeing an unsurpassed sound experience.
One 1” aluminum cone tweeter is held in place by an acoustically optimized arm in front of a 6” aluminum cone woofer. Together with the crossover network which is made of high-quality components, this results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 60 Watt.
To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker connection is made using Gold plated spring clamp connectors. The mounting of the loudspeaker into the ceiling should be done by a quick-fixing mechanism which can be tightened by four screws and the front grill is held into place by neodymium magnets.
Highlights:
- High-end 2-way ceiling speaker
- 60 Watt RMS power
- SlimLine™ grill with 1mm thin border
- Elegant & unobtrusive design
- Gold-Con™ spring clamps
- Thin edged white grill
- 1" + 6" " Aluminum membrane drivers
- Warm & true to nature sound
- Paintable front grill
Product Features:
- Dimensions: 230 x 103 mm (Ø x D)
- Weight: 1.650 kg
- Construction: ABS
- Cut-out measurement: 205 mm (Ø)
- Built-in depth: 100 mm
- Mounting & handling: 4 Screw quick-fixing mechanism
- Colours: Black frame & white grill
- Operating temperature: -20 °C ~ 60 °C
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
- Product manual
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- CE certificate
- EASE file
- Acoustical data graphs
- EASE Address file
- EASE Focus + Address File
Brand: AUDAC
