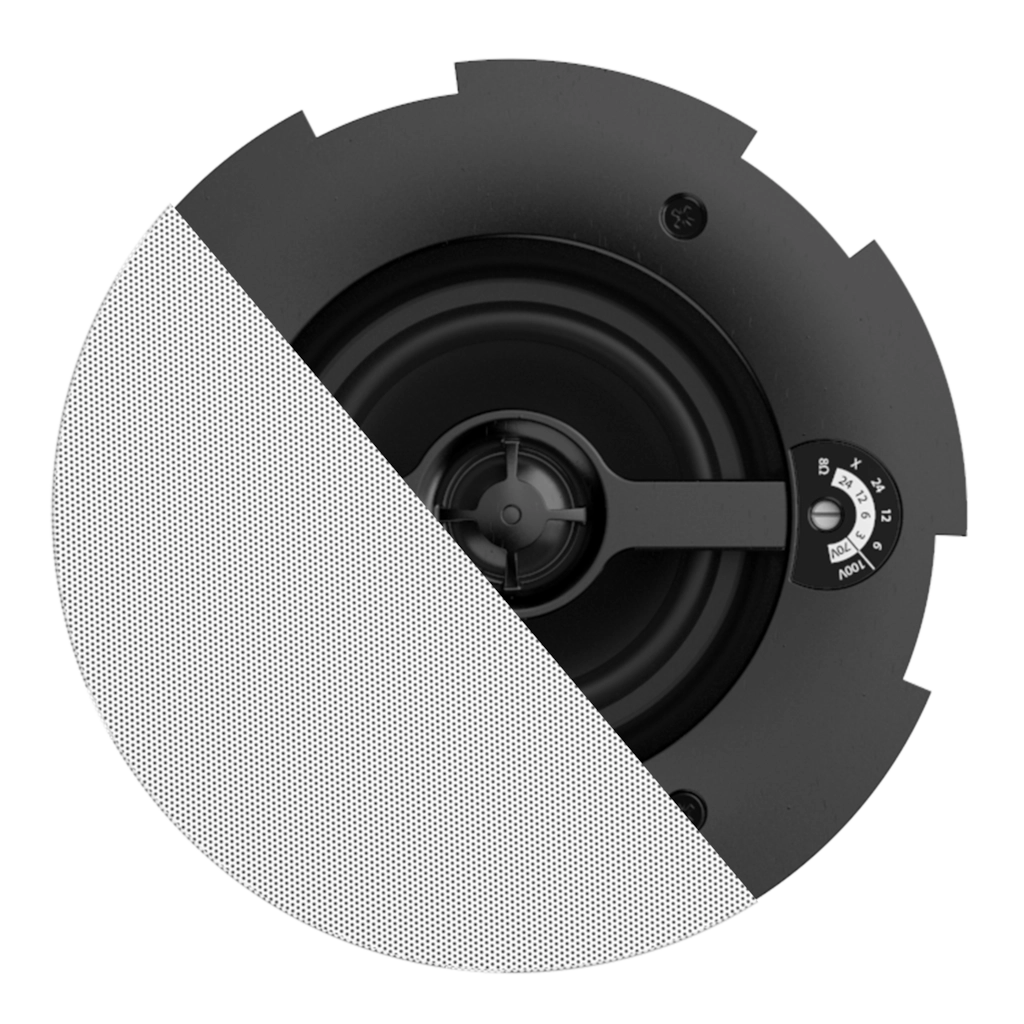

AUDAC - CALI424I/W - Safelatch™ 2-way 4" ceiling speaker with TwistFix™ grill - White version (RAL9016)
Description:
The CALI424 is a 2-way ceiling speaker with rear dome, constructed using a 4” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance up to 155°.
The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a rotary switch for tapping of the 70/100V line transformer with tappings for 24W, 12W, 6W and an 8 Ohm bypass connection.
Highlights:
- Secure SafeLatch™ system
- Excellent off-axis performance (up to 155°)
- Unique TwistFix™ grill design
- Borderless grill design
- Rotary switch for 6W, 12W, 24W and an 8 Ohm tappings
- Terminal block connection
- Shallow built-in depth (122 mm)
- Multi-tapping 70V / 100V line transformer
Product Features:
- Cut-out measurement: 170 mm (Ø)
- Dimensions: (CALI424) 192 x 110 mm (Ø x D)
- Built-in depth: (CALI424) 110 mm
- Operating temperature: -20 °C ~ 60 °C
- Construction: ABS and powder coated steel
- Mounting: SafeLatch™ mounting system
- Weight: 2.26 kg
- Dimensions: (CALI424I) 192 x 138 mm (Ø x D)
- Built-in depth: (CALI424I) 122 mm
Downloads:
- AUDAC New products 2024
- Installation manual
- Installation manual - FR
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- CE certificate
- Acoustical data graphs - CALI424
- Acoustical data graphs - CALI424I
- EASE Focus - CALI424I
Brand: AUDAC
