Description:

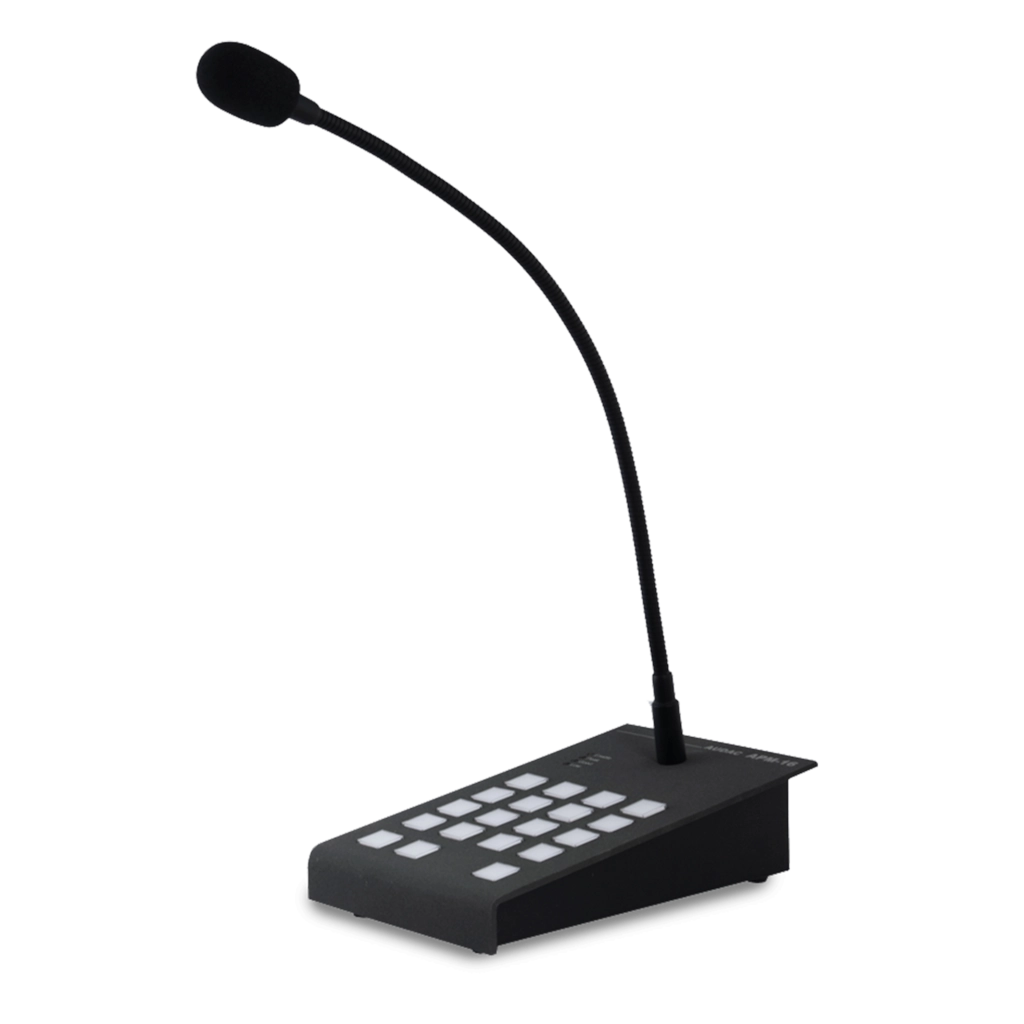

The APM series are digital paging microphones fitted with a 32 cm gooseneck microphone containing a back electret condenser cell with cardioid pickup pattern. A built-in limiter constantly monitors the input level, guaranteeing a constantly maintained and clear output signal. The status of the reproduced signal is indicated using different LED’s on the microphone’s base, providing an indication to the speaker that the signal is clear and audible in all situations. Each console contains three standard buttons (Except the APM101MK2 which only has PTT) with pre-assigned functions: PTT (Push To Talk), select all and clear all. The other function buttons can be configured to make announcements to particular zones, grouping zones or other functions. (Trigger & switch relay, voice-file announcements, … ) Standard configurations can be made using matrix systems (R2 & M2) while special configurations can be programmed using the APC100 configurator tool in combination with 'AUDAC system manager' software.
Highlights:
- High quality back electret condenser capsule with cardioid pickup pattern
- 35 cm flexing gooseneck microphone
- Integrated memory for voice-file storage & playback
- Level & status indication LED’s
- 16 Colours illuminated push button
Product Features:
- Dimensions: 120 x 55 x 190 mm (W x H x D)
- Weight: 1.350 kg
- Data protocol: RS-485
- Audio protocol: Analogue
- Audio protocol: Digital (configurable)
- Colours: Grey metallic front panel
- Construction: Steel
- Required cabling: None
- Required cabling: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Product manual - FR
- Product manual - DE
- Example setup
- Technical drawing
- Technical drawing
- CE certificate
- Jumper instructions
- Button labels
Brand: AUDAC
