Description:

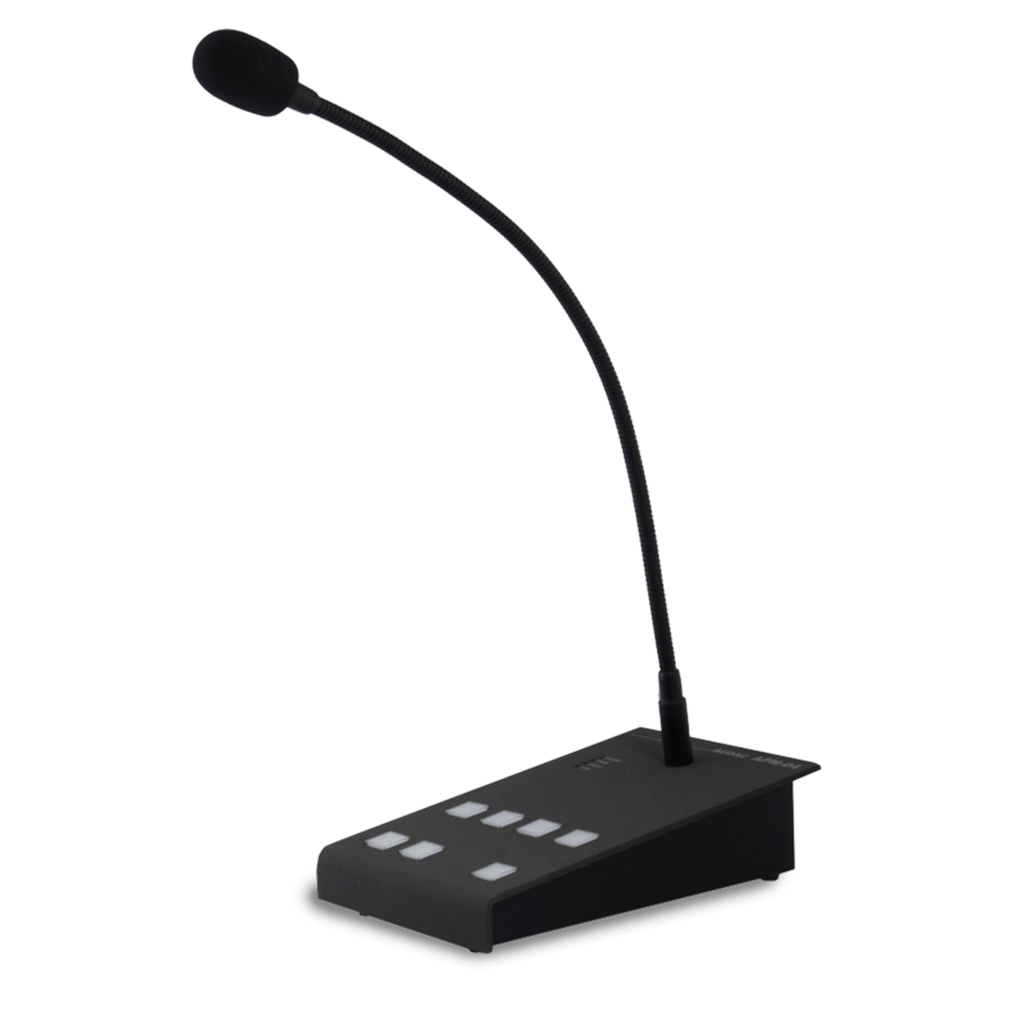

The APM104 is a digital paging microphone for 4 zones which is equipped with a condenser element with cardioid characteristic, mounted on a 30 cm gooseneck. By means of a built-in compressor / limiter, the output level of the microphone signal is constantly maintained. The status of the reproduced signal is indicated on the front panel, to ensure the speaker that the message is clear and audible in all situations. The console has 4 zone selection buttons and three standard buttons with preassigned functions: PTT (Push To Talk), select all and clear. The functions can be freely programmed by using the APM configuration software. In combination with the AUDAC ARU relay groups, the APM paging consoles offer a wide range of possibilities.
Highlights:
- Flexing gooseneck structure for highly accurate positioning
- High quality back electret condenser capsule with cardioid pickup pattern
- Integrated memory for voice-file storage & playback
- Level & status indication LED’s
- 4 Colours illuminated push button
Product Features:
- Dimensions: 120 x 55 x 190 mm (W x H x D)
- Weight: 1.350 kg
- Data protocol: RS-485
- Audio protocol: Analogue
- Audio protocol: Digital (configurable)
- Required cabling: None
- Required cabling: None
- Colours: Grey metallic front panel
- Construction: Steel
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Product manual - FR
- Product manual - DE
- Example setup
- Technical drawing
- Technical drawing
- CE certificate
- Jumper instructions
- Button labels
Brand: AUDAC
