Description:

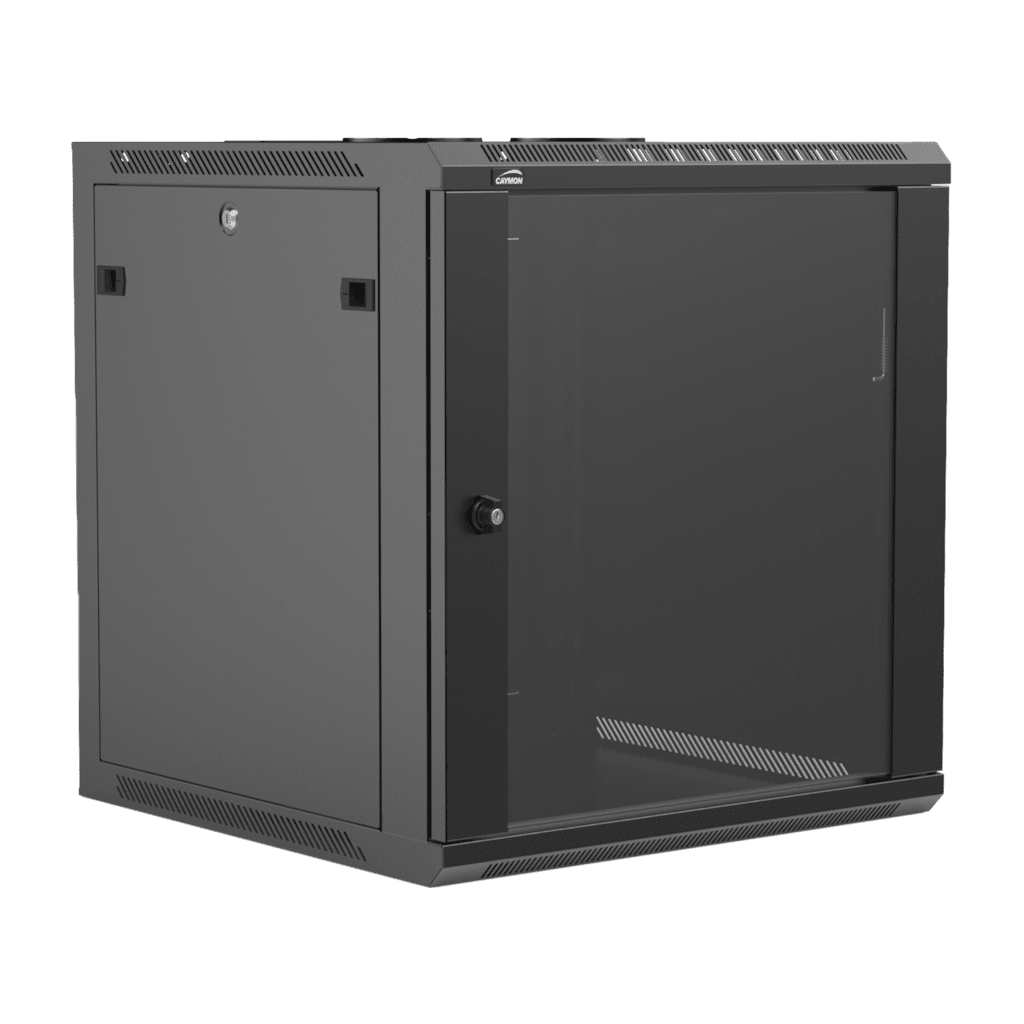

The WPR612R is a professional 19” wall mount metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. It is a solid construction with a cold rolled steel 1,5 mm thick frame and 1,2 mm thick plates. The WPR612R comes fully assembled and can easily be mounted on the wall. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure easy fitting of the equipment. The tempered smokey grey glass door is fitted with a keylock to keep the equipment only accessible for authorized persons. The removable sides and back panels allow easy installing and cabling of the equipment while the in depth adjustable 19” profiles provide great flexibility for installing equipment depending on its depth.
Highlights:
- Stores up to 12 units of 19” Equipment
- Integrated ventilation grid on top
- Cable entry on top, back & bottom (closable)
- Removable sides for easy installing & cabling
- Removable rear panel
- Keylock with butterfly handle
- Front in depth adjustable 19” profiles (max 560 mm)
- Punched square holes for use with snap-in cage nuts
- Tempered glass door with keylock
- Loading capacity of 60 kg
Product Features:
- Dimensions: 600 x 638 x 600 mm (W x H x D)
- Unit height: 12 HE
- Weight: 30.7 kg
- Colours: Black (RAL9004)
- Max. load: 60 kg
- Max. usable depth: 560 mm
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
