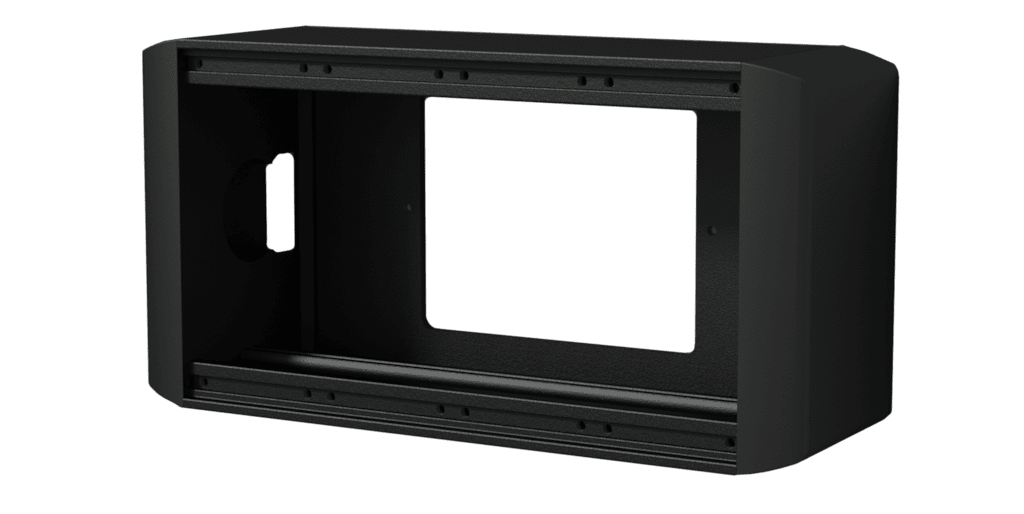

CAYMON - CASY034/B - CASY on-wall chassis - 4 space - Black

https://www.sonora.be/web/image/product.template/1333/image_1920?unique=fb3a034
(0 avis)

34,30 € 34.300000000000004 EUR 34,30 € TVA comprise

34,30 € TVA comprise

Pas disponible à la vente

Cette combinaison n'existe pas.

Belangrijk: Bij het kiezen van de huurperiode geef je enkel de gebruiksdagen aan. Het materiaal wordt automatisch een extra dag gereserveerd voor de het ophalen en terugbrengen.

Nos conditions générales de vente et de location


Nous faisons toujours le maximum pour livrer le plus vite possible. Prenez contact avec nous pour discuter des options de livraison.

Description:

The CASY034 is a modular on-wall chassis which can be fitted with 4 modules from the CASY range. The flexible and modular structure ensures a maximum versatility, allowing to adapt the system to each project's specific requirements. Possibilities are ranging from audio, video and data interconnection to power distribution, control panels, power supplies and many more.

The aluminum construction features pre-threaded hole inserts allowing module installation with a maximum of 4 units with a built-in depth up to 60 mm. It can be mounted on any wall or surface, while cable entry is possible through large access holes on the rear side. The sides are constructed out of ABS material with break-out points allowing cable entry through a duct or gland. Modules can be fixed inside the unit using the included M3 screws. The overall construction is finished in a black (RAL9004) structured and scratch resistant powder coating.


Highlights:

  • Wide variation of compatible modules available
  • Pre-threaded mounting profile for easy assembly
  • 60 mm usable depth
  • Structured and scratch resistant black powder coating
  • Provided cable gland entry
  • Stores 4 units of CASY modules
  • Flexible system for system integration & connectivity
  • Aluminum extruded construction with rounded ABS sides

Product Features:

  • Module: None
  • Dimensions: 172 x 88.1 x 65 mm (W x H x D)
  • Weight: 0.42 kg
  • Connection: Large access holes on rear side Cable duct or gland entry on sides
  • Finish: Structured powder coating
  • Colours: Black (RAL9004)
  • Construction: Alu extrusion with plastic side covers
  • Max. usable depth: 60 mm

Downloads:


Brand: CAYMON

Product Link
