Description:
The ATEOxM series are extraordinary loudspeakers especially designed for fixed installation in- & outdoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.

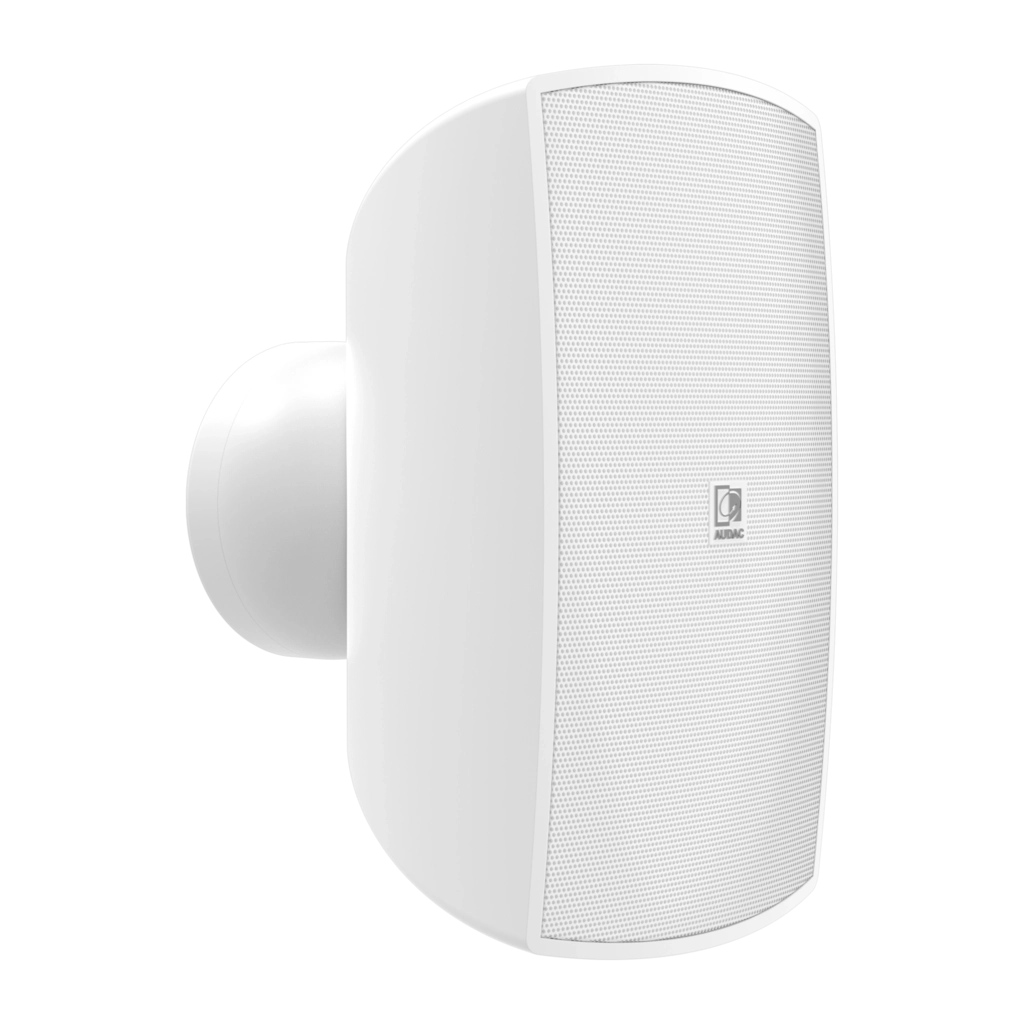

The ATEO6M is the 6” version, with a 1” dome tweeter and a 6” Mid / Low frequency driver, ensuring a true-to-nature, high-fidelity reproduction of music and speech, whilst maintaining an ultra-flat frequency response. It features a stunningly designed and elegant-looking weatherproof ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting system using the weatherproof CleverMount+™ technology, making the loudspeaker cabinet flow together with the mounting system providing great ease for installing the loudspeaker in one good-looking entity. This design loudspeaker forms the ideal solution for fixed-install in- & outdoor applications.
With the improved CleverMount+™ innovation, mounting and connection of the loudspeaker happens in seconds after attaching the wall mount to the desired location. During installation, the wires can easily be connected to the integrated WAGO connectors. For ease of installation & modification, the ATEOxM loudspeakers come with an external power tap selection switch located on the rear of the speaker. Like this, it’s really child’s play to install a large number of loudspeakers in no time.
All ATEOxM series speakers are available in black (/B) or white (/W).
Highlights:
- Hydrophobic cloth behind aluminum grill
- Weatherproof - IP66 rating
- Ultra-flat frequency response
- Unmatched sonic brilliance
- 720 Hours salt spray test
- Marine grade build quality & UV resistant
- Save up to 50% installation time thanks to CleverMount™+
- External power tap selection
- Screwless WAGO connections for quick & safe connection with linktrough up to 4mm²
- No wires or bracket visible from the back
- Extremely firm fixation from front, allowing swift and accurate inclination
- Optional mounts for inclination angle or light track mounting
Product Features:
- Colours: Black (RAL9005) (ATEO6M/B, ATEO6DM/B)
- Colours: White (RAL9003) (ATEO6M/W, ATEO6DM/W)
- Construction: ABS
- Dimensions: 193.1 x 347.5 x 215.2 mm (W x H x D)
- Operating temperature: -20 °C ~ 60 °C
- Weight: 3.820 kg
- Mounting: Weatherproof CleverMount+™
- Front finish: Aluminium grill with hydrophobic cloth
- Accessories: None
Downloads:
- AUDAC New products 2024
- User manual
- Technical drawing
- Technical drawing
- 3D-PDF
- 3D-DWG
- STL File
- STEP File
- OBJ File
- RFA File
- Comparison chart - ATEO series
Brand: AUDAC
