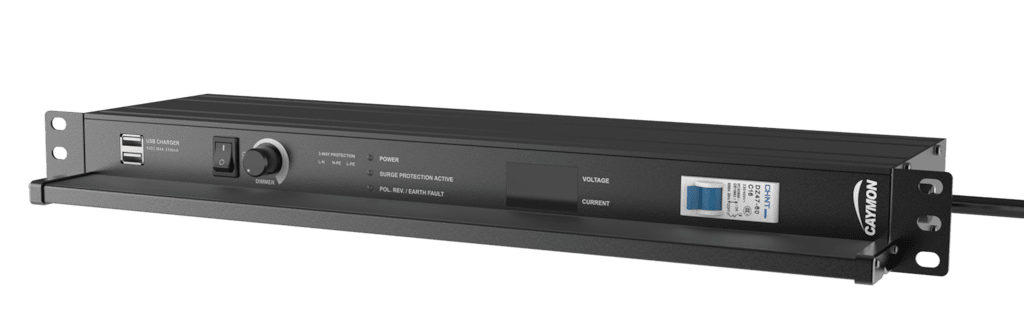

CAYMON - PSR529G/B - 19" power distribution - 9 x German sockets - Light/USB/Fuse/Surge/Display - Black version
Description:
The PSR529 series includes a switchable LED rack light, two front USB jacks and a 16 Amps circuit breaker on the front panel of the unit. Power surge & spike protection is offered by the internal protector network, while a voltage and current indicator allow continuous voltage and power consumption monitoring. Power distribution for up to nine devices is made possible using the rear output sockets.
Highlights:
- 3 x 2.5 mm² cable diameter
- Charging front USB front connection (2x)
- Dimmable rack lighting (LED) with ON/OFF switch
- 2.5 meter fixed connection cable
- 16A ~ 250 VAC / 4000 W Max
- Chassis earth connection point
- Male Schuko (CEE 7/7) input connection
- Black aluminum housing
- 19” Power distribution unit
Product Features:
- Cable length: 2.5 m
- Unit height: 1 HE
- Weight: 1.92 kg
- Power handling: 250 V AC ~ 16 A / 4000 W
- Dimensions: 483 x 44.7 mm (W x H) (with mounting ears)
- Surge protection: Maximum continuous working voltage (Ur):
- Surge protection: Nominal discharge current (8/20μS) In: 10 KA
- Surge protection: Voltage protection level (Up):
- Surge protection: Response time (tA):
- Surge protection: Insulation resistance (Ris): > 100 MΩ
- USB: 2 x USB Type A connections
- USB: 5V / 2.1 A supply (two ports combined)
- LED Light: Switchable ON/OFF (switch)
- LED Light: Dimmable between 25% and 100%
- LED Light: Max. 70 lumen
Downloads:
Brand: CAYMON
