Description:

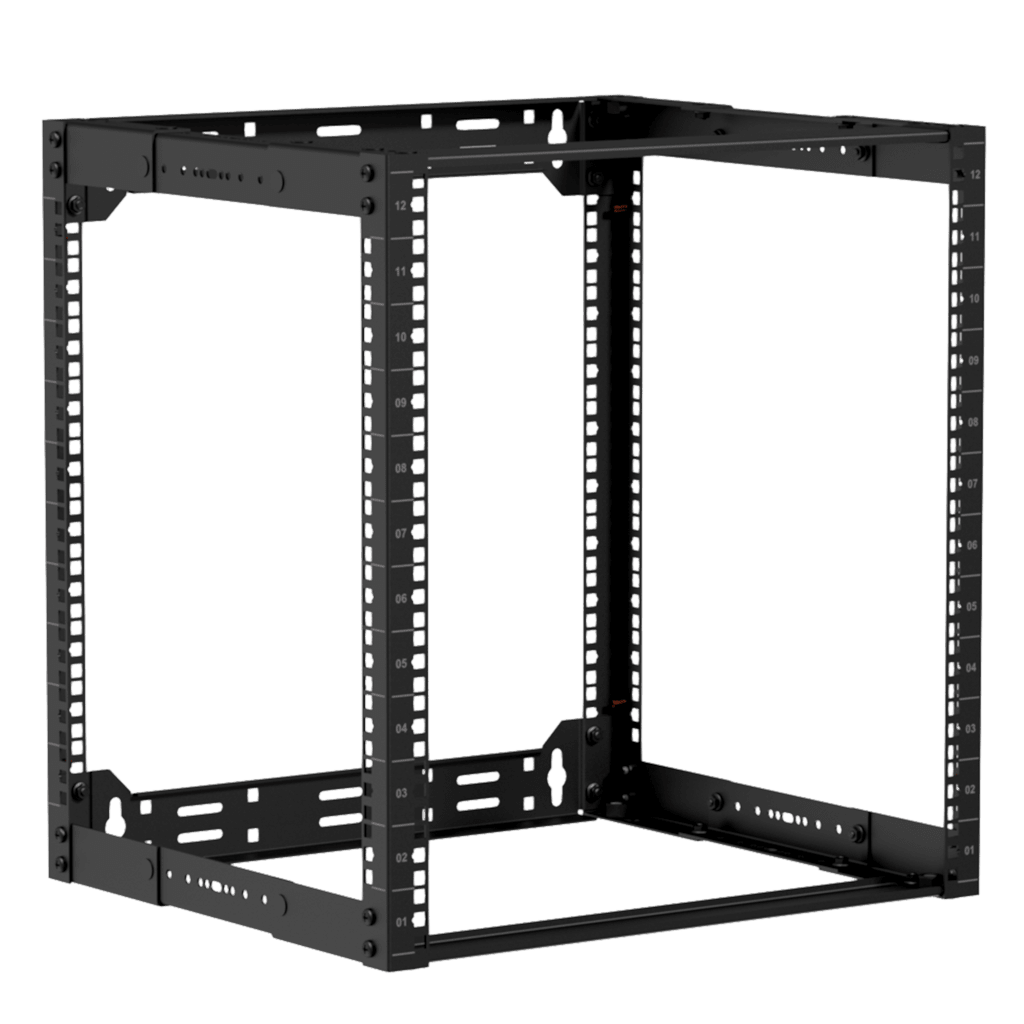

The OPR312A is an in depth adjustable professional and solid constructed open frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 12 units of 19” equipment.
The open frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
Highlights:
- In depth adjustable
- Stores up to 12 units of 19” Equipment
- Ships as flat-down package
- Stand alone & in-furniture integration
- Unrestricted air flow due to open-frame design
- Floor standing & wall mounted use
- Easy assembly in 10 minutes
- 2 mm thick cold rolled steel frame
- Punched square holes for use with snap-in cage nuts
- Loading capacity of 100 kg
Product Features:
- Unit height: 12 HE
- Max. load standing: 100 kg
- Max. load hanging: 50 kg
- Dimensions: 520 x 558 x 300~450 mm (W x H x D) (excl. rubber feet)
- Colours: Black (RAL9004)
- Max. usable depth: 300 ~ 450 mm
- Weight: 9 kg
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
Brand: CAYMON
