Description:

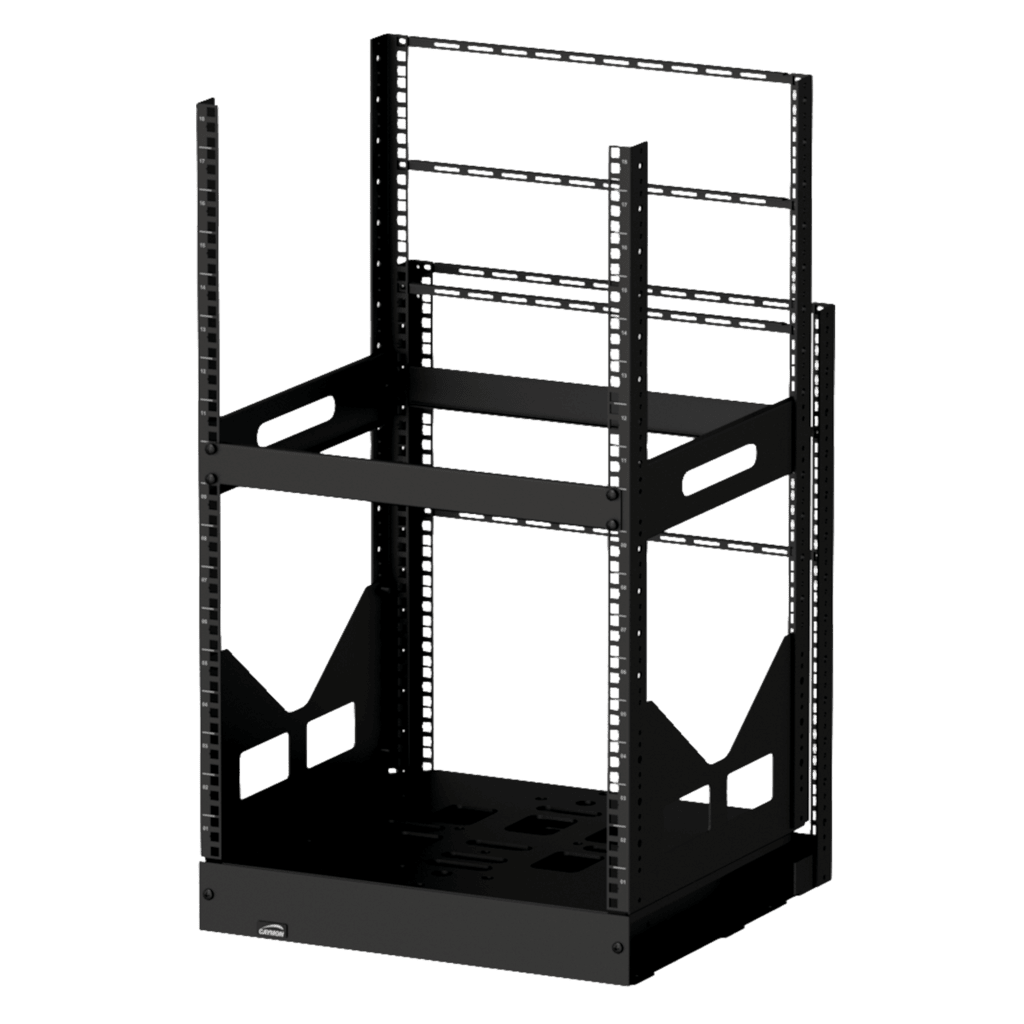

The GPR418 is a professional and solid constructed slide-out rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. It offers a flush mount solution for installation up to 18 units of equipment. The HexaSlide™ extending equipment bay combined with cable management rear supports allows rack integration into walls or furniture, while keeping the rear side of the equipment accessible for maintenance and servicing. Position locking in extended position with rotation angles for 45° and 90° allows easy fitting for the equipment, while locking in retracted position offers optimal security and stability for permanent installation. The construction is made of 3.0 mm thick steel profiles and finished in a black (RAL9004) powder coating with fine structure and printed unit measurement indicators.
Highlights:
- Punched square holes for use with snap-in cage nuts
- Stores up to 18 units of 19” Equipment
- HexaSlide™ extending equipment bay
- Retracted and extended position locking
- Cable management rear supports
- Ships as assembly package (2 cartons)
- In-wall / furniture integration for 19" equipment
- Can carry a max load of 60 kg
Product Features:
- Dimensions: 503 x 878 x 489 mm (W x H x D)
- Unit height: 18 HE
- Max. usable depth: 425 mm
- Max. load: 60 kg
- Colours: Black (RAL9004)
- Weight: 38.34 kg
- Accessories: None
- Accessories: None
Downloads:
- Mounting points - GPR series
- Installation manual
- Technical drawing
- Technical drawing
- CE certificate
- Rack comparison
Brand: CAYMON
