Description:

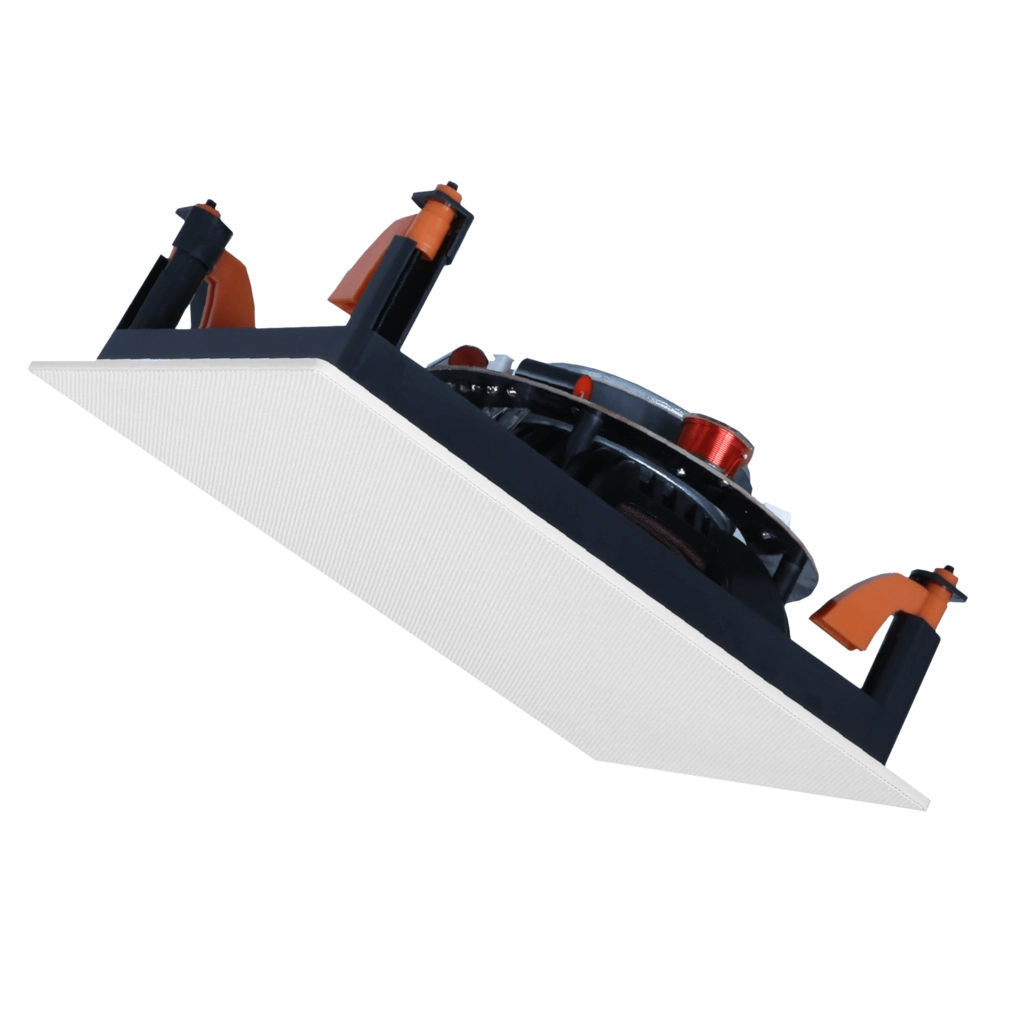

The selection of high-grade materials in combination with accurate acoustics craftsmanship makes the MERO speakers superior in their class. The largest MERO6 consists of a 6” aluminum cone woofer and complementary 1” dome tweeter that are smoothly matched and optimized using a high-quality crossover network. An acoustically optimized waveguide matches the dispersion of woofer and tweeter, while a phase-plug reduces diffraction and enhances off-axis high frequency response. All these details share their part to its pure sound. An elegant look with minimal visual impact is created by the slim grill with very thin border, while great ease and installers convenience is guaranteed using the quick-fix mechanism with Gold-CON connectivities. The grill is held in place using neodymium magnets, providing a quick and stable assembly. Installation can be done in both vertically and horizontally, while the rotatable tweeter allows optimal orientation positioning.
Highlights:
- SlimLine™ grill with 1mm thin border
- Gold-Con™ spring clamps
- 1" + 6" Aluminum membrane drivers
- QuickFix installation system
Product Features:
- Dimensions: 196.5 x 276.5 x 82 mm (W x H x D)
- Construction: ABS
- Front finish: Thin edged white grill (RAL9003)
- Cut-out measurement: 174 x 254 mm
- Built-in depth: 78.5 mm
- Mounting & handling: 4 Screw quick-fixing mechanism
- Colours: Black frame & white grill
- Weight: 1.660 kg
- Operating temperature: -20 °C ~ 60 °C
- Colours: White (RAL9003) (MERO6)
- Colours: White (RAL9016) (MERO6I/W)
- Accessories: None
- Accessories: None
- Accessories: None
- Accessories: None
Downloads:
- Product information sheet - FR
- Product manual
- Technical drawing
- Technical drawing
- 3D-DWG
- 3D-PDF
- STL File
- STEP File
- OBJ File
- CE certificate
- EASE file
- Acoustical data graphs
- EASE Address file
Brand: AUDAC
