Description:

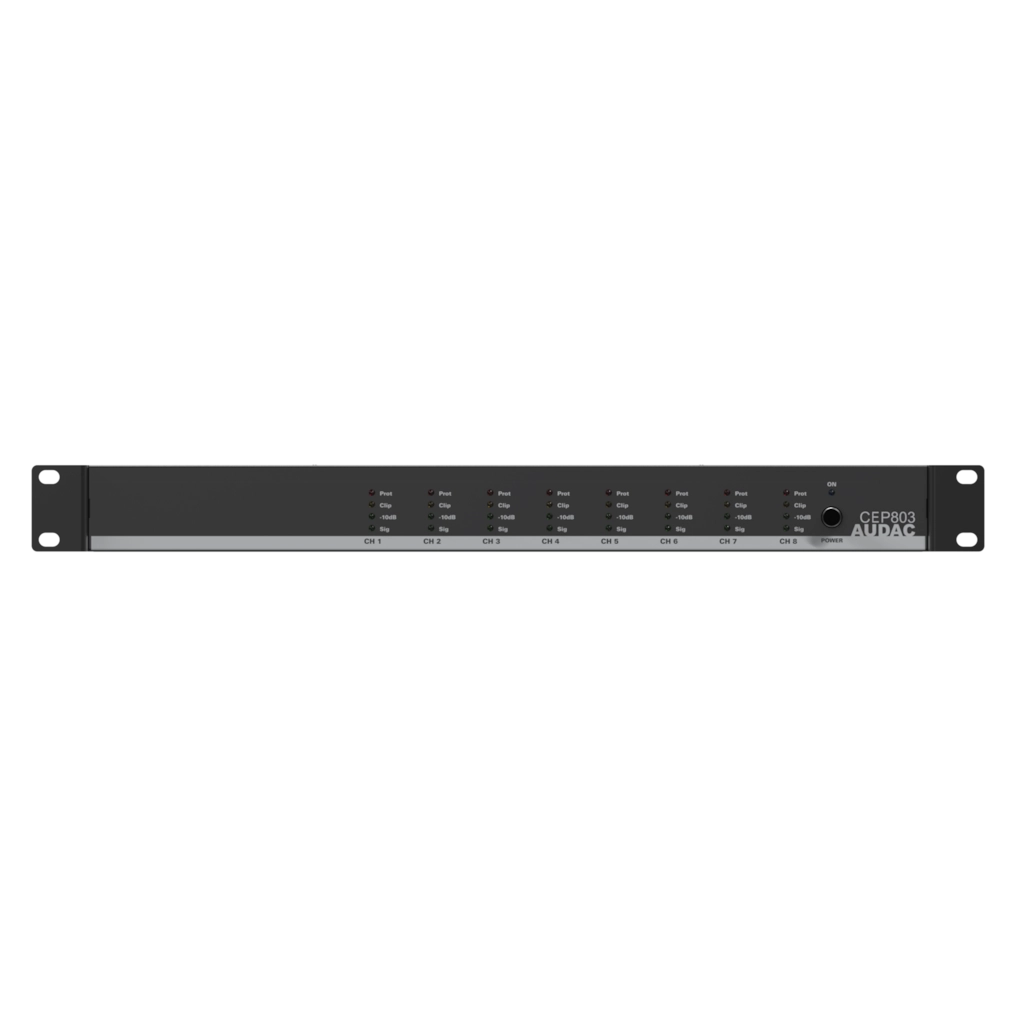

The CEP series are professional 70/100V multi-channel energy-efficient amplifiers. The one unit height device comes into two models. The CEP803 offers eight channels and has an output power of 30 Watt. Both low impedance as 70/100V, deliver high-quality amplification distributed over multiple zones in various applications. With its compact and lightweight design, the CEP series is designed with high efficiency and reliability by providing input linking through miniature switches at the back of the device in combination with Class-D amplifier technology. These switches allow daisy linking inputs from one channel to another by simply pressing the switch.
The highly efficient Class-D amplifier technology delivers an uncompromised sound experience in the most effective way. The input connections are performed with 3-Pin Terminal block connectors while the output connections are performed with a 4-pin Terminal block connector.
The multi-channel amplifier is Energy Star compliant yet can be enabled or disabled with a standby switch on the back of the device. This amplifier is an HE (1RU) 19” unit. In order to ensure maximum installer/maintenance convenience, the CEP is passively cooled.
Highlights:
- Class-D amplifier technology
- Terminal block input connections
- Compact and lightweight design
- Input linking through miniature switches
- Terminal block output connections
- Energy star certified
Product Features:
- Mounting: 19”
- Unit height: 1 HE
- Colours: Black
- Dimensions: 482 x 44 x 335 mm (W x H x D)
- Weight: 6 kg
- Construction: Steel
Downloads:
Brand: AUDAC
