Description:
"Don't feel like hanging around?"

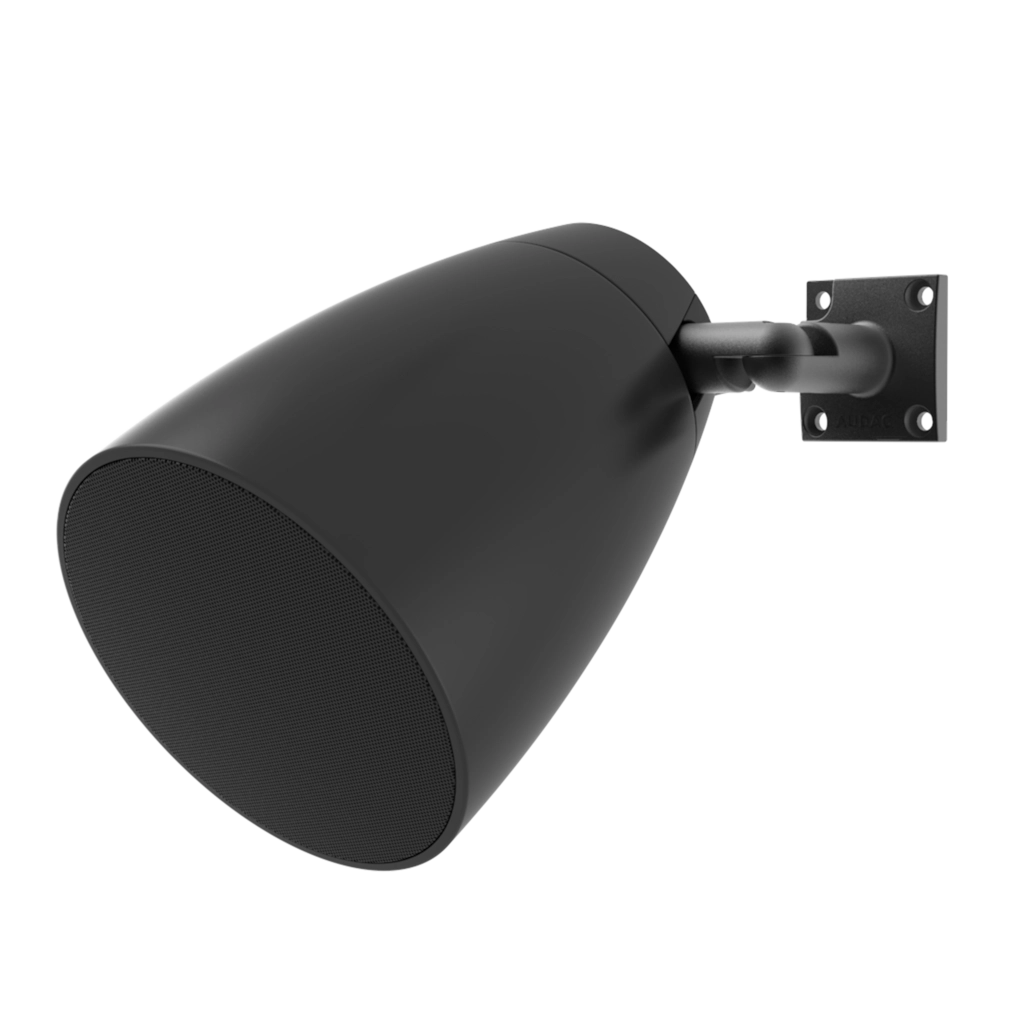

The ALTI4M is a variant of the ALTI pendant speakers, featuring a die-cast mounting bracket for wall & ceiling mount purposes. This allows the same audio system design and identity throughout the entire installation in case some areas are not allowing pendant solutions being used due to the ceiling heights or structures. Acoustics and construction are identically crafted, while connections are made through weatherproof AWX5™ connectors, this construction has an IP65 rating.
The ALTI4M features a 2-way 4” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance. The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 Watt is achieved.
Highlights:
- Innovative & unique design
- Wide opening angle
- AWX5™ waterproof connector
- Outdoor rated construction
- Countless mounting possibilities
- Multi-tapping 70V / 100V line transformer
Product Features:
- Dimensions: 205 x 170 x 258 mm (W x H x D)
- Connection cable length: 0.7 m
- Mounting & handling: 2-way Revolving mounting bracket
- Construction: Polypropylene
- Front finish: Aluminium grill
- Weight: 2.31 kg
- Accessories: None
- Accessories: None
Downloads:
- User Manual
- Technical drawing
- Technical drawing
- STEP File
- STL File
- OBJ File
- 3D-DWG
- 3D-PDF
- Acoustical data graphs
- EASE Focus + Address File
- AUDAC - Siberian test
Brand: AUDAC
